ARBURG 270M 500-90/90 In 9724

Thumb0-ARBURG 270M 500-90/90 In 9724 AR 050 94 Thumb1-ARBURG 270M 500-90/90 In 9724 AR 050 94 Thumb2-ARBURG 270M 500-90/90 In 9724 AR 050 94 Thumb3-ARBURG 270M 500-90/90 In 9724 AR 050 94 Thumb4-ARBURG 270M 500-90/90 In 9724 AR 050 94 Thumb5-ARBURG 270M 500-90/90 In 9724 AR 050 94

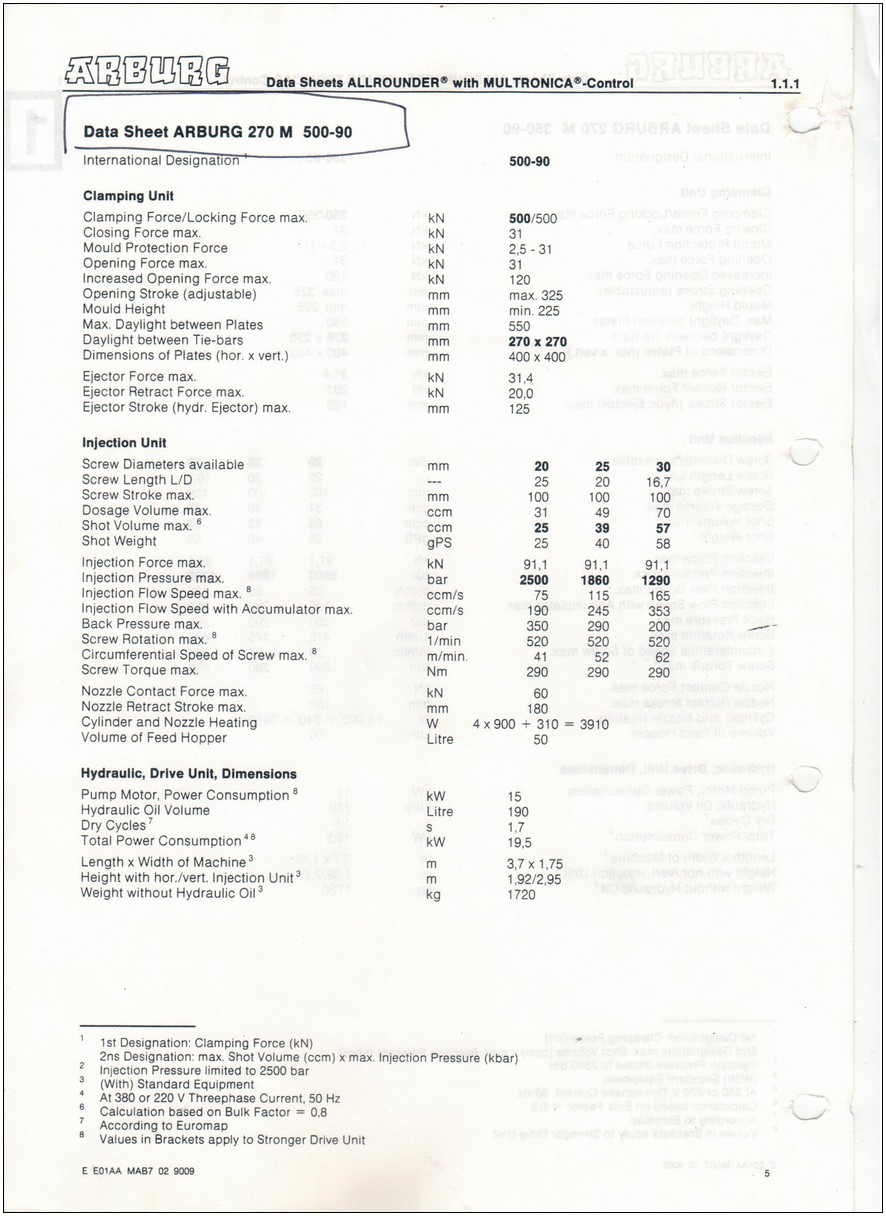

Technical Sheet

  • Code: In 9724
  • Brand:ARBURG
  • Model:270M 500-90/90
  • Tonnage:50
  • Year:1994
  • Clearence between tie-bars:270X270
  • Screw diameter:25
  • Calculated shot volume:39
  • Min/Max mould thickness: 225
  • Euromap: 500-90
  • Mov. plasten stroke: 325

Description

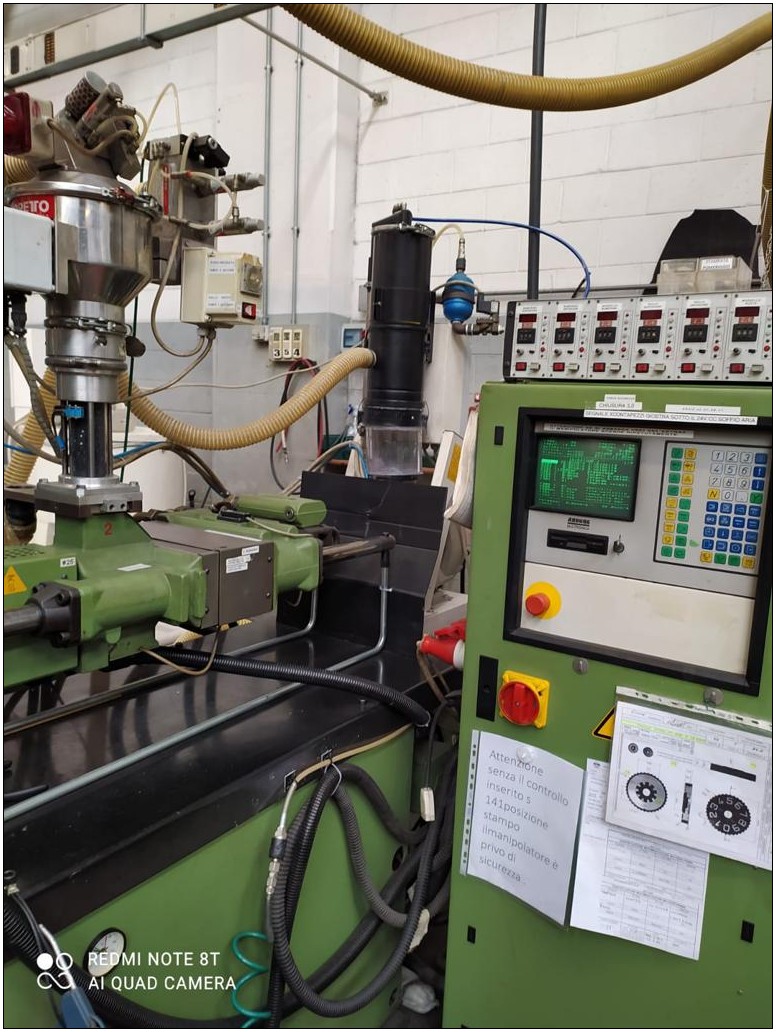

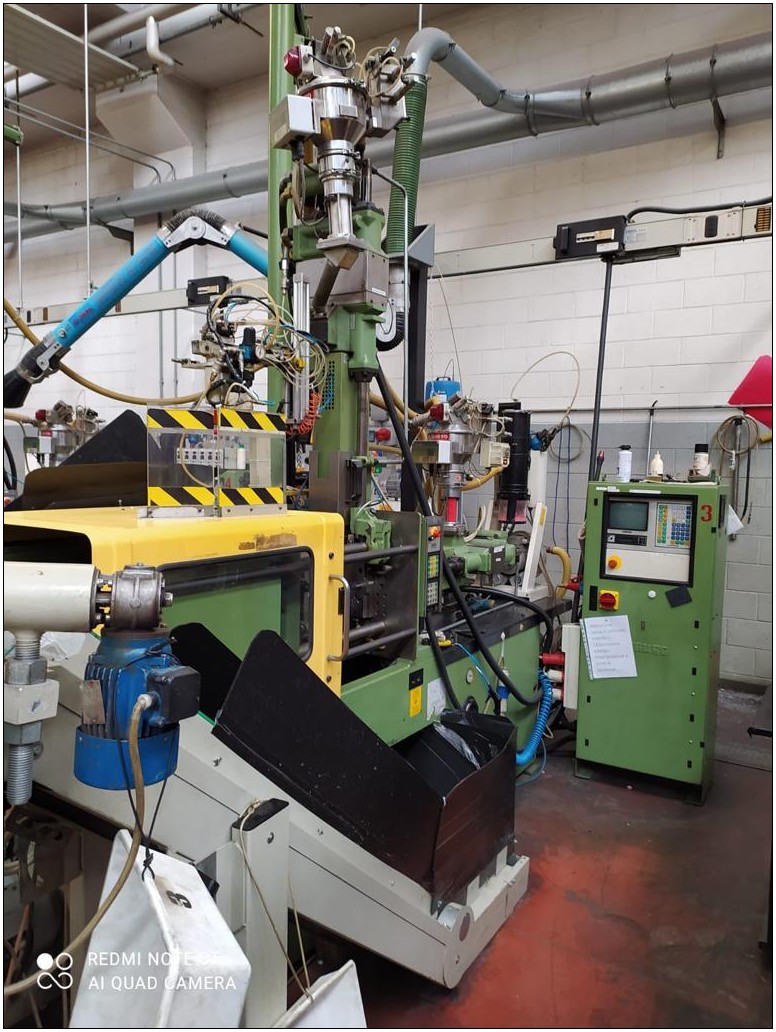

bi-injection machine

vertical injection with 20mm diameter screw

hoist capacity 200kg height from the ground 3800mm
