KRAUSS MAFFEI KM 420/750-380 CX Z - 180 BO V In 7314 KM 420 11
SOLD
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Technical Sheet
- Code: In 7314 KM 420 11
- Brand:KRAUSS MAFFEI
- Model:KM 420/750-380 CX Z - 180 BO V
- Tonnage:420
- Year:2011
- Clearence between tie-bars:900 x 800
- Screw diameter:A: 25 mm B: 25 mm C: 25 mm
- Robot connection Euromap-12:Yes
- Core pull: 3
- Mov. plasten stroke: 1400 mm
- Air ejection: 13
- Akkumulator: Yes
Description

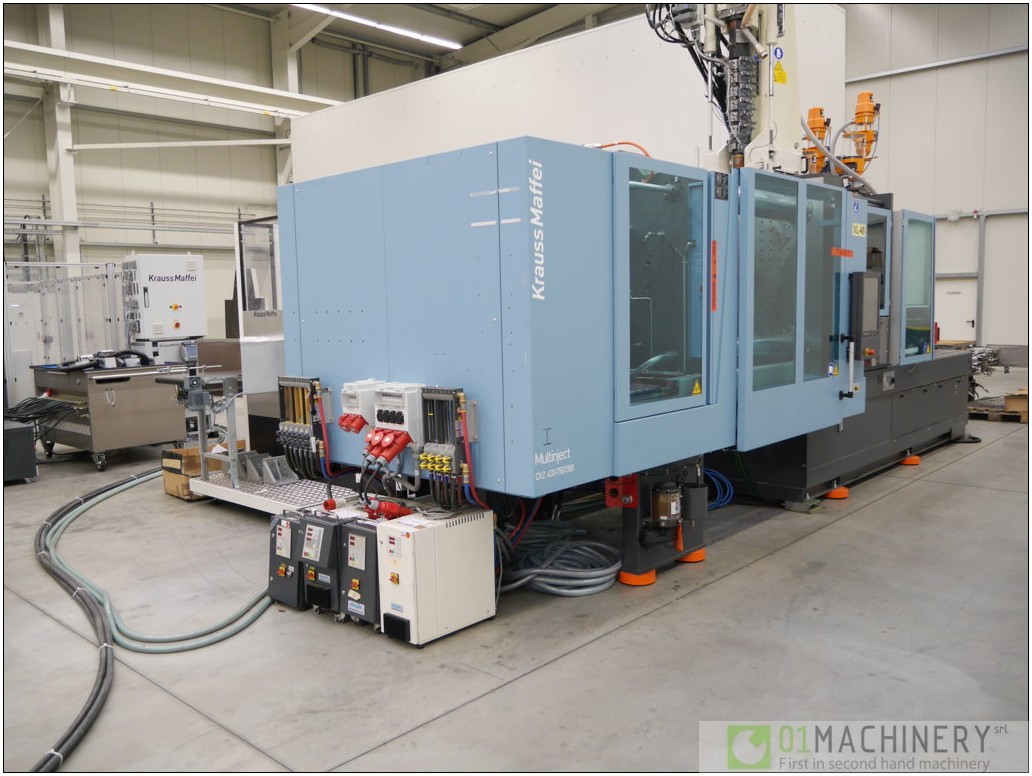

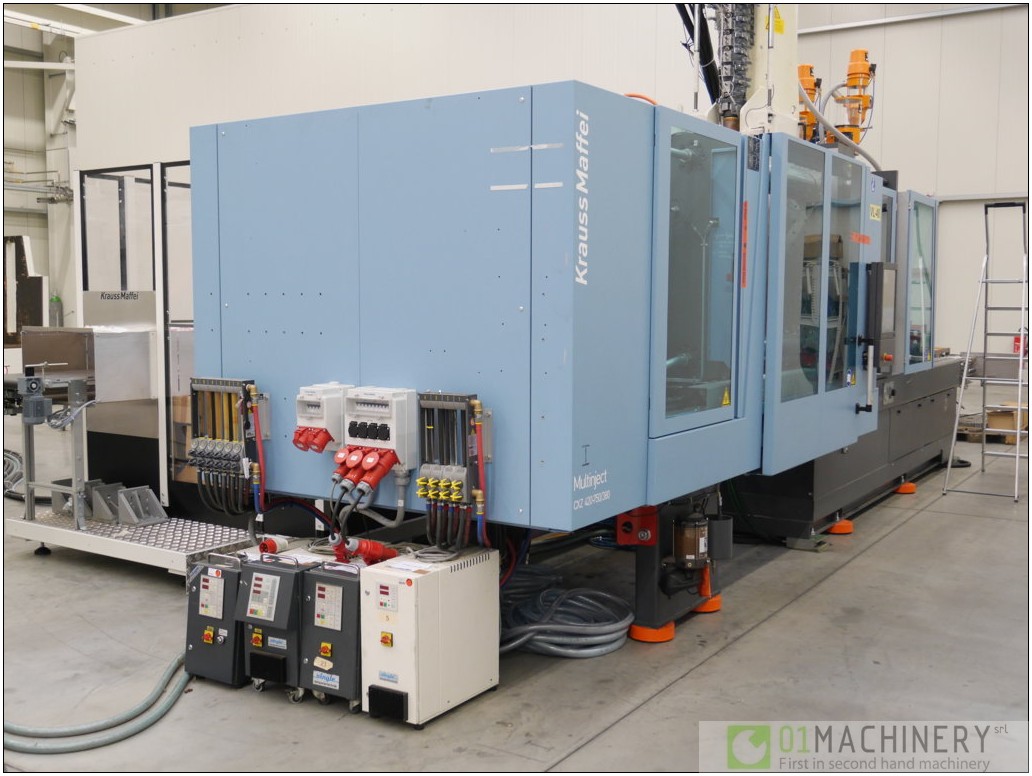

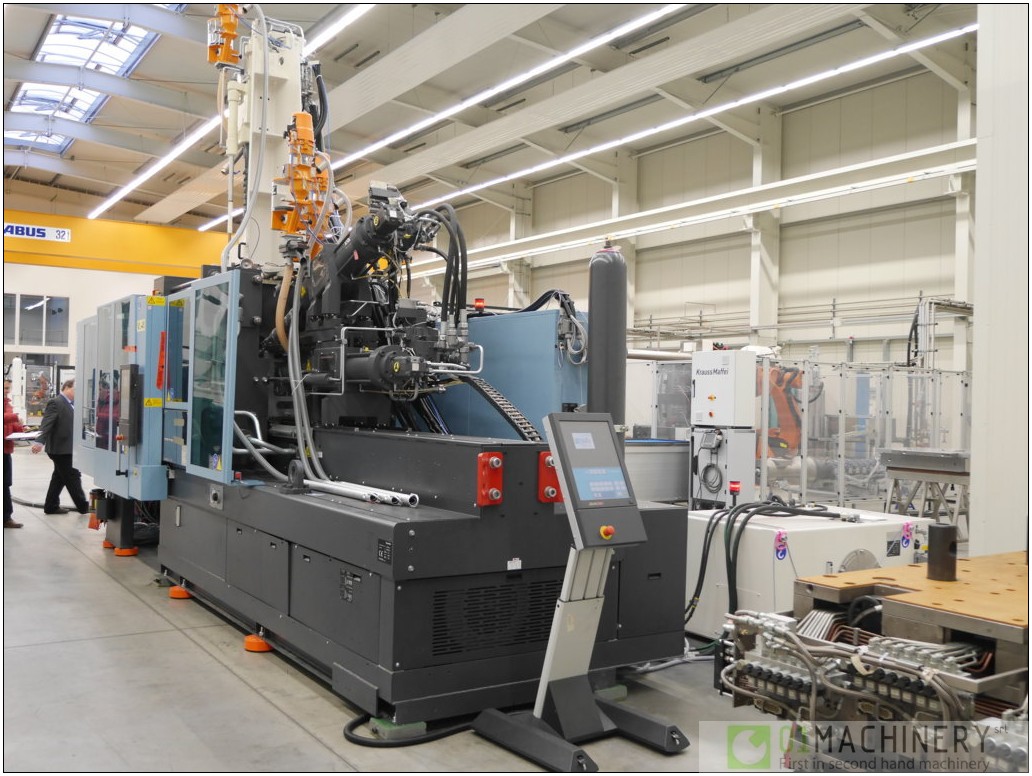

TRIPLE INJECTION PRESS
N ° 2 Horizontal injections structured in this way: the main 750 with 25 mm screw diameter and the other 380 with 25 mm screw diameter

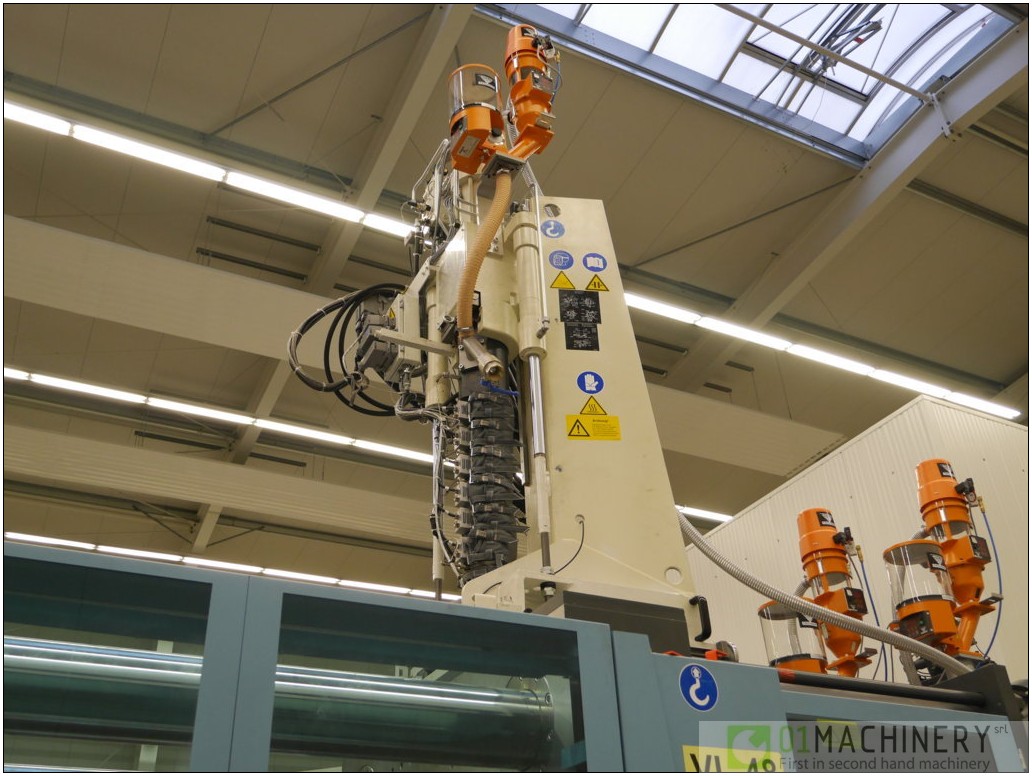

N ° 1 Vertical Injection KM 180 BO V with screw diameter 25 mm (switchboard and control unit external to the press with Euromap interface)
Hot Rooms: 24 zones
N 4 hydraulic shutters

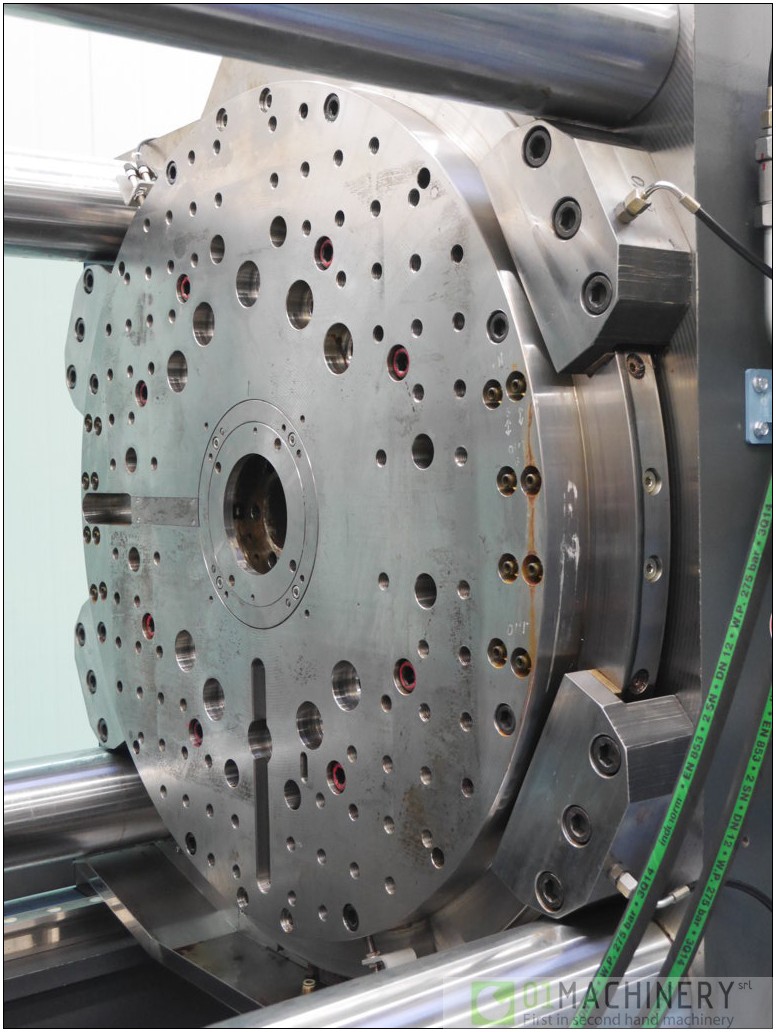

Rotary Table Diameter: 1090 mm with 8 cooling channels
Central extraction with rotary movement

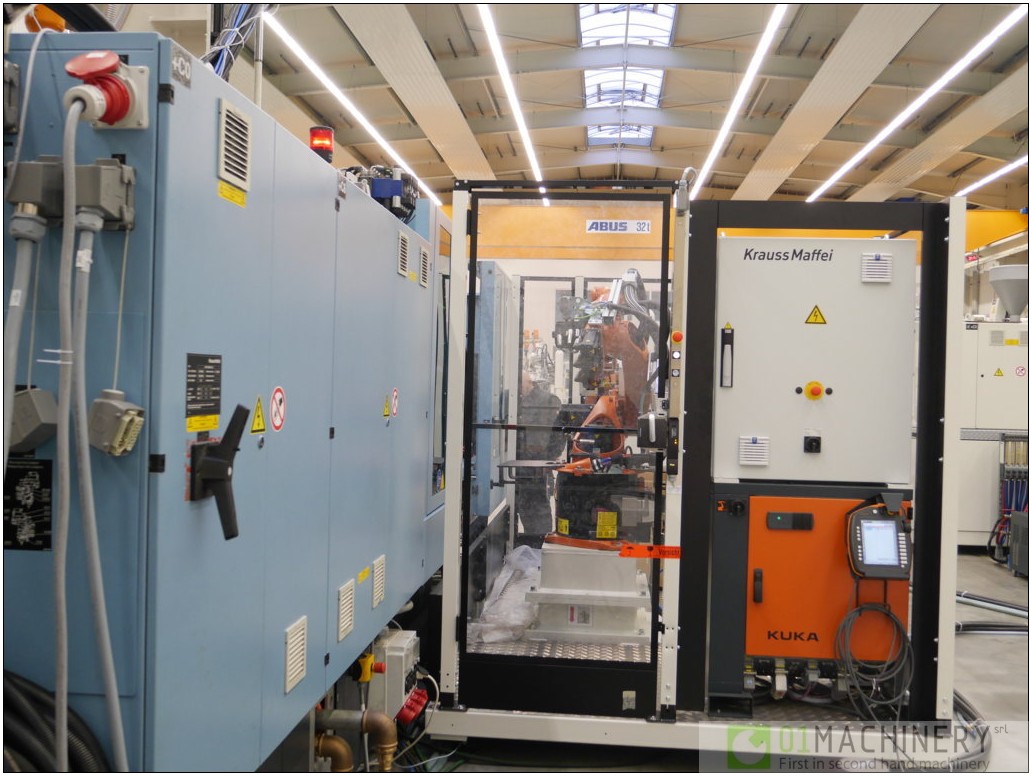

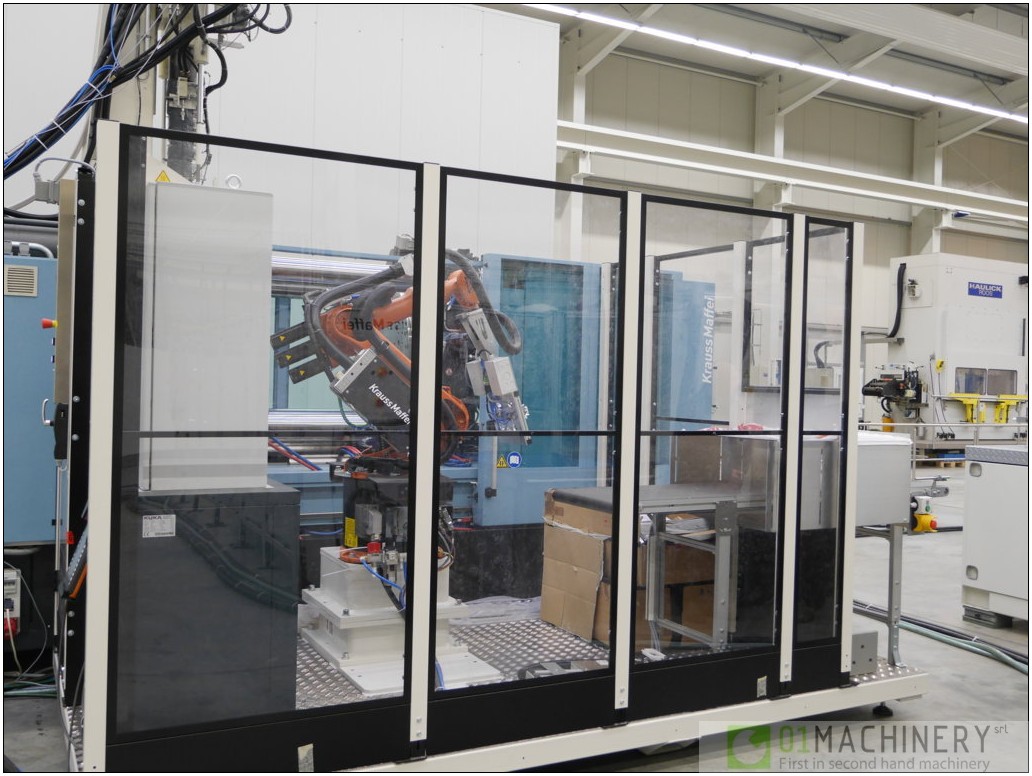

ISLAND COMPOSED BY:
- Press

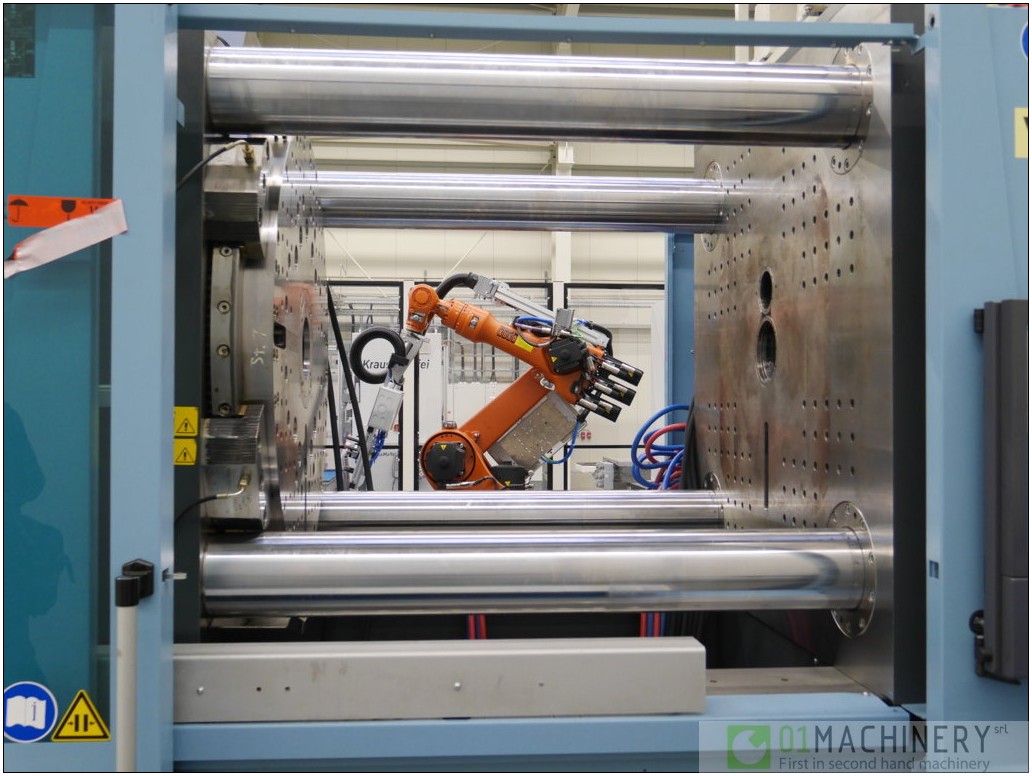

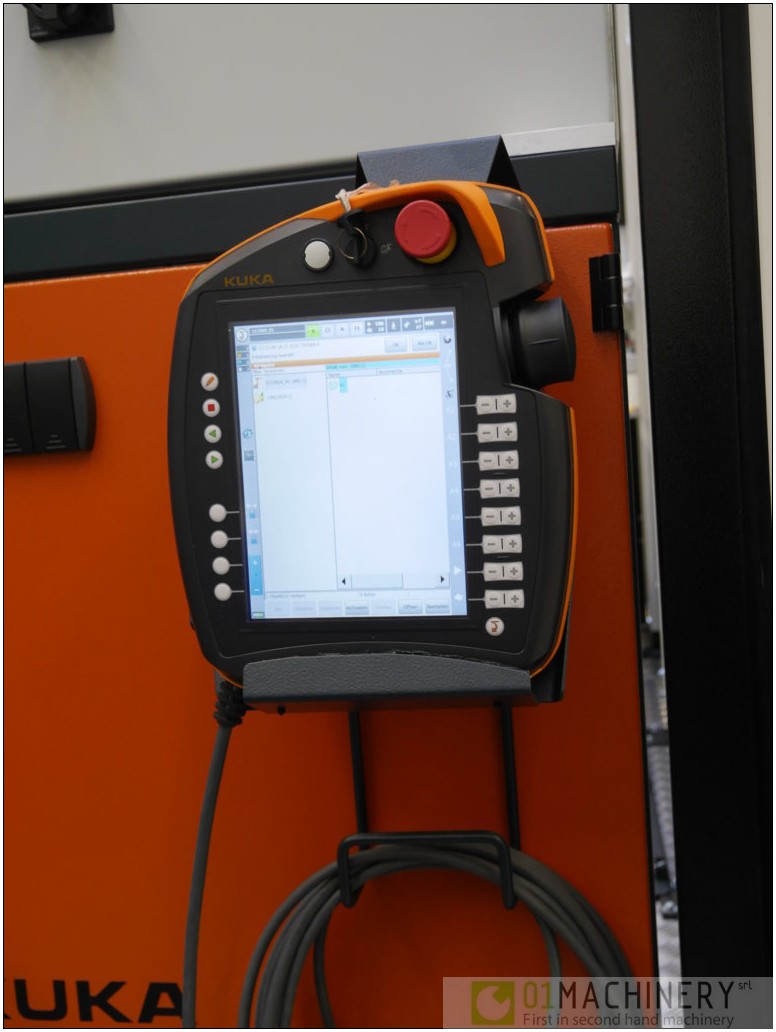

- KUKA Anthropomorphic Robot mod. KR 16-2 Maximum Load: 15 kg
- Conveyor belt
