Technical Sheet

  • Code: Ac 7336 MO 96
  • Brand:MOTAN
  • Model:MCU-2 - HLX 6
  • Year:1996

Description

FEEDING / STORAGE SYSTEM

The power supply system consists of:

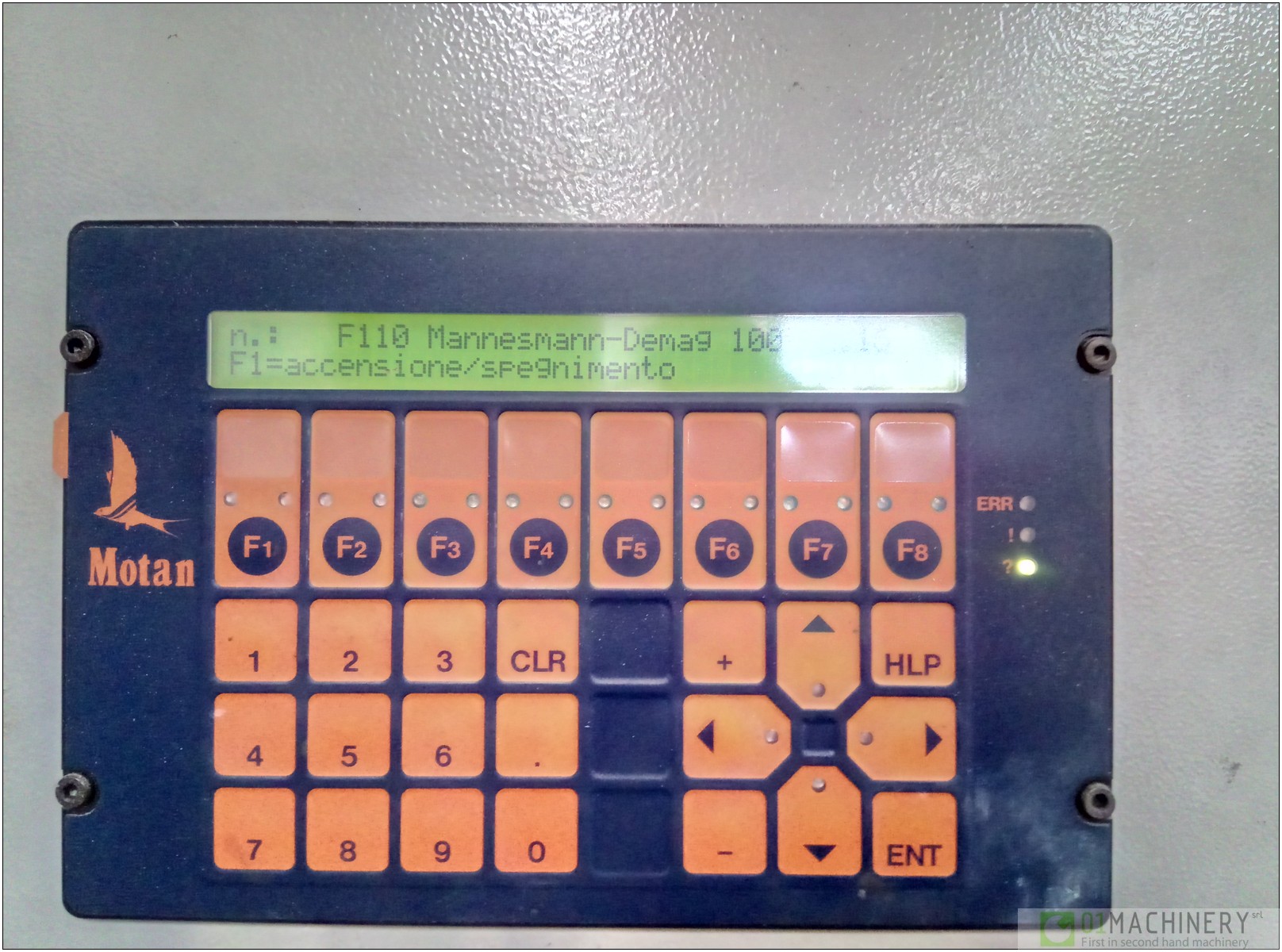

- MCU control panel 2

- n° 1 Turbine

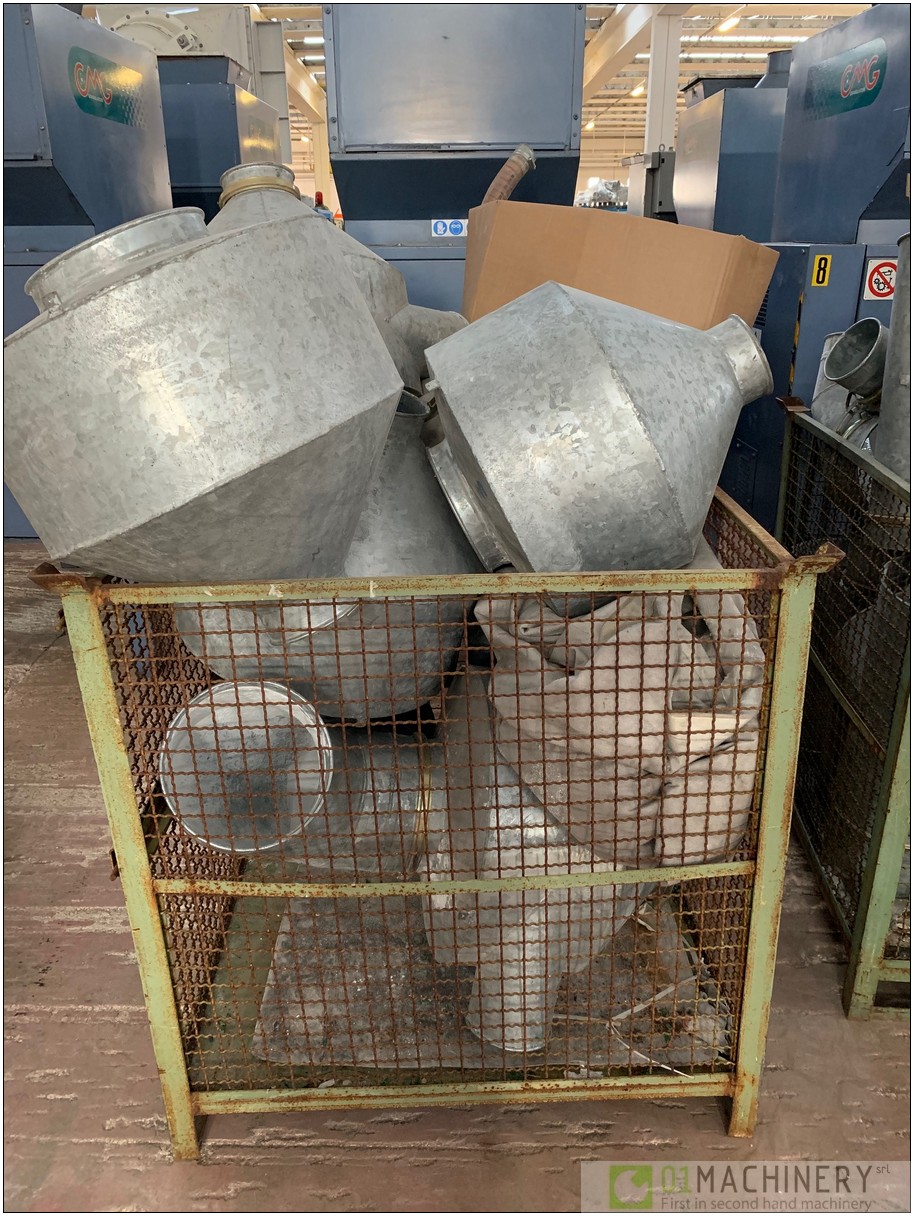

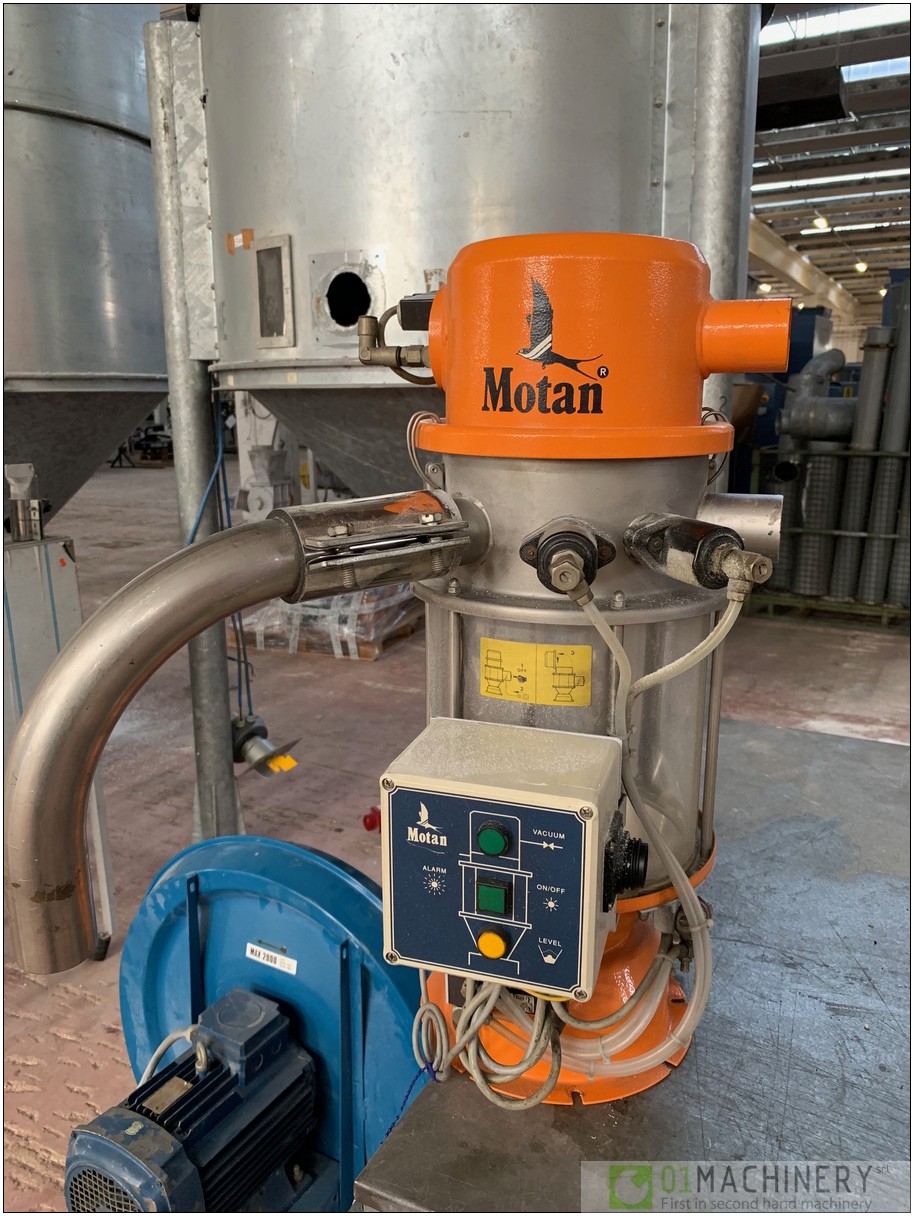

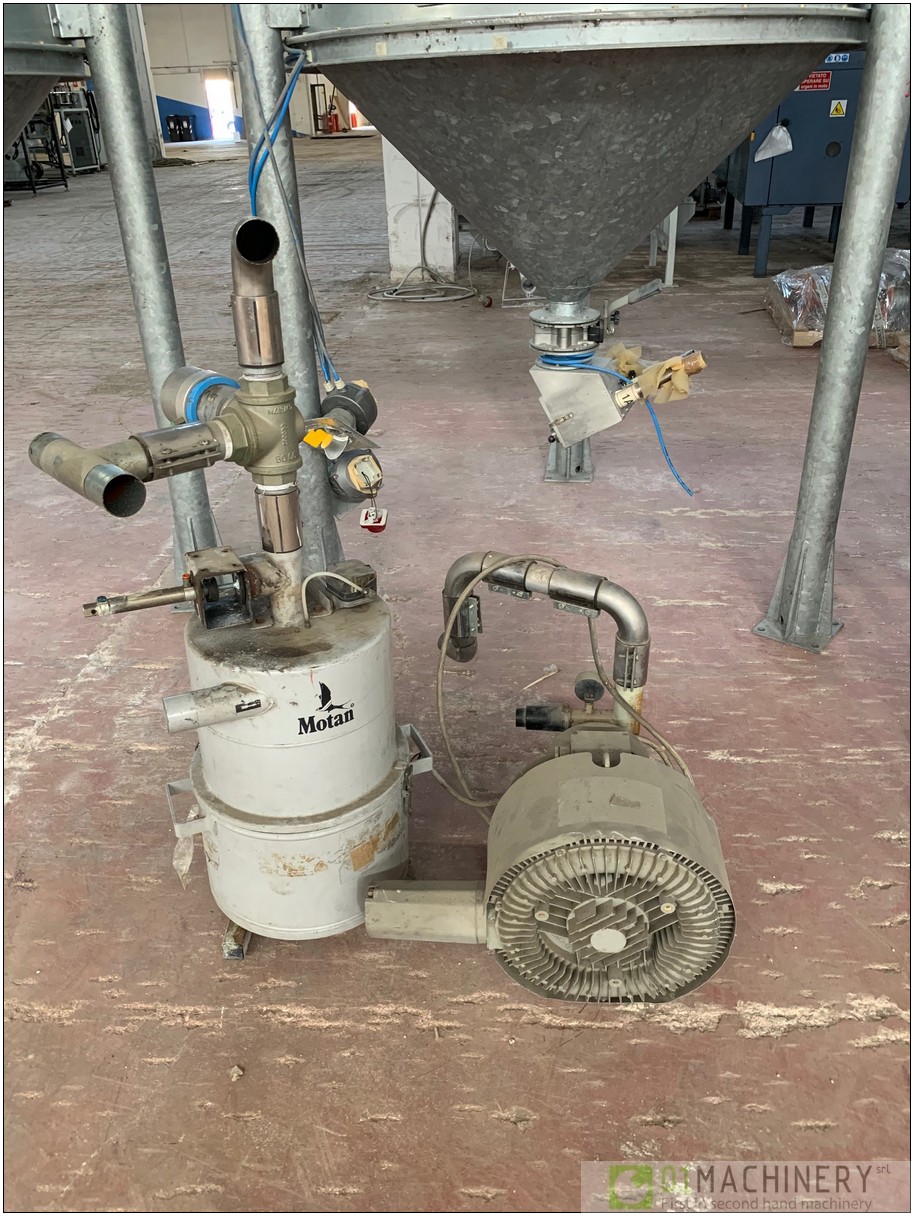

- 16 Motan HLX 6-2-B000-0 vacuums

Capacity: 6 lt

Number of material entries: 2

- n ° 1 Motan HLX 15-2-B000-0 aspirator

  Capacity: 15 lt

number of material entries: 2

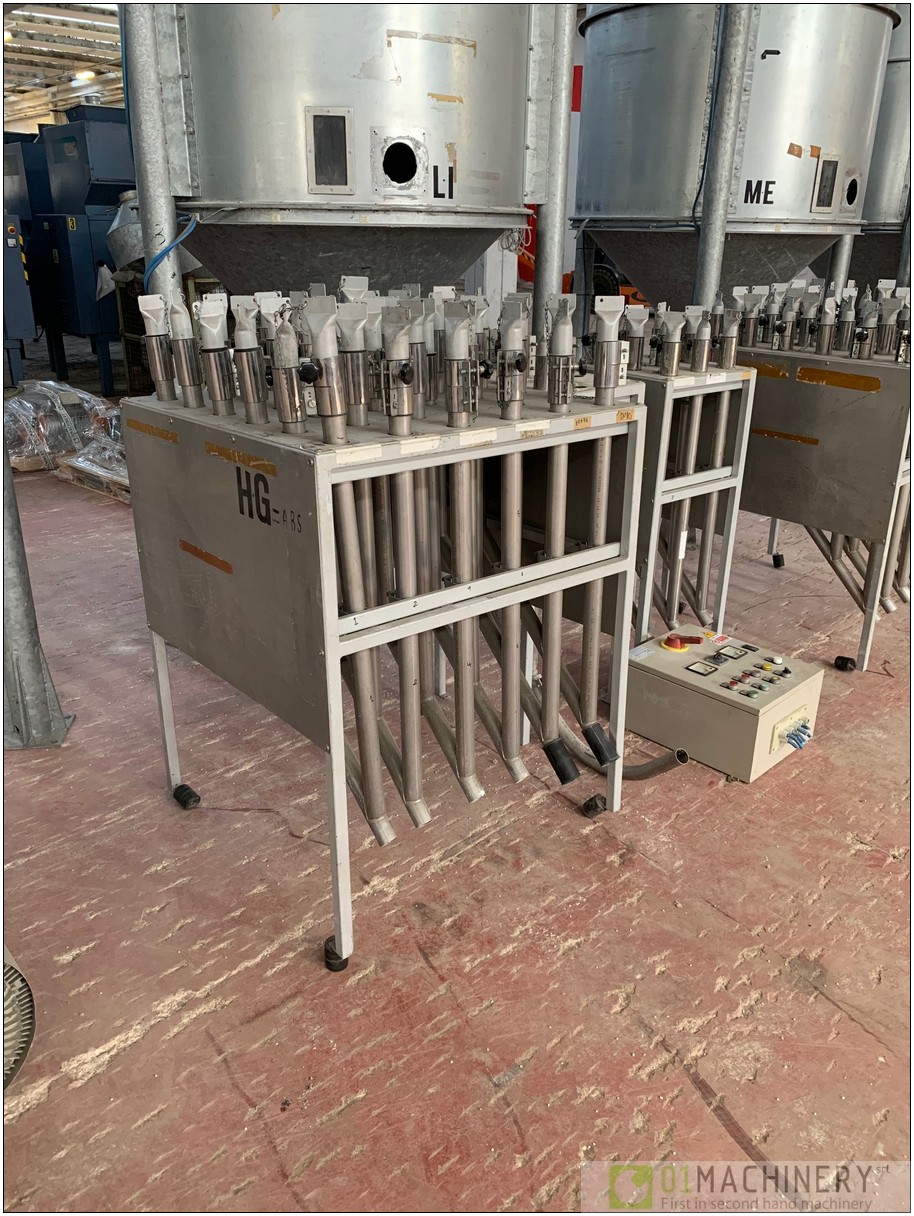

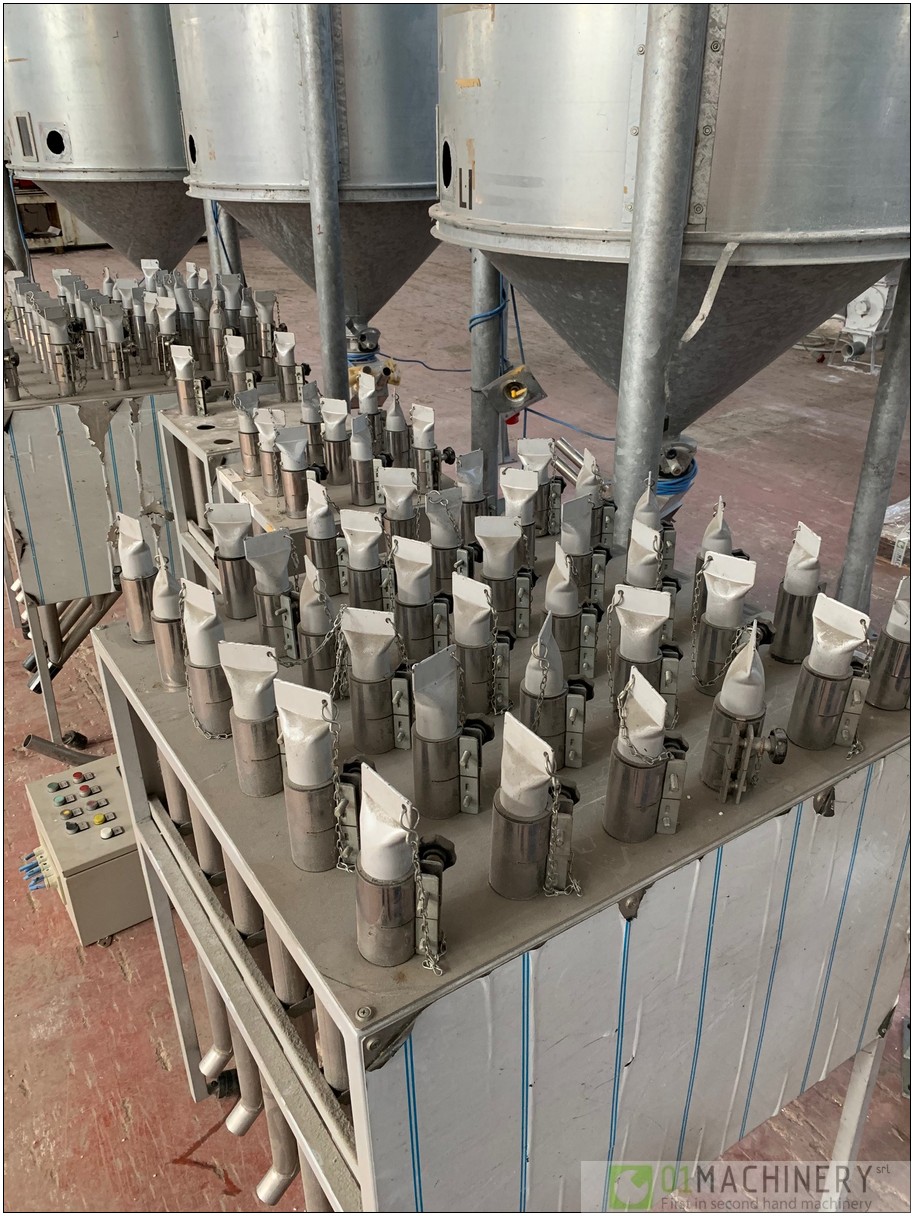

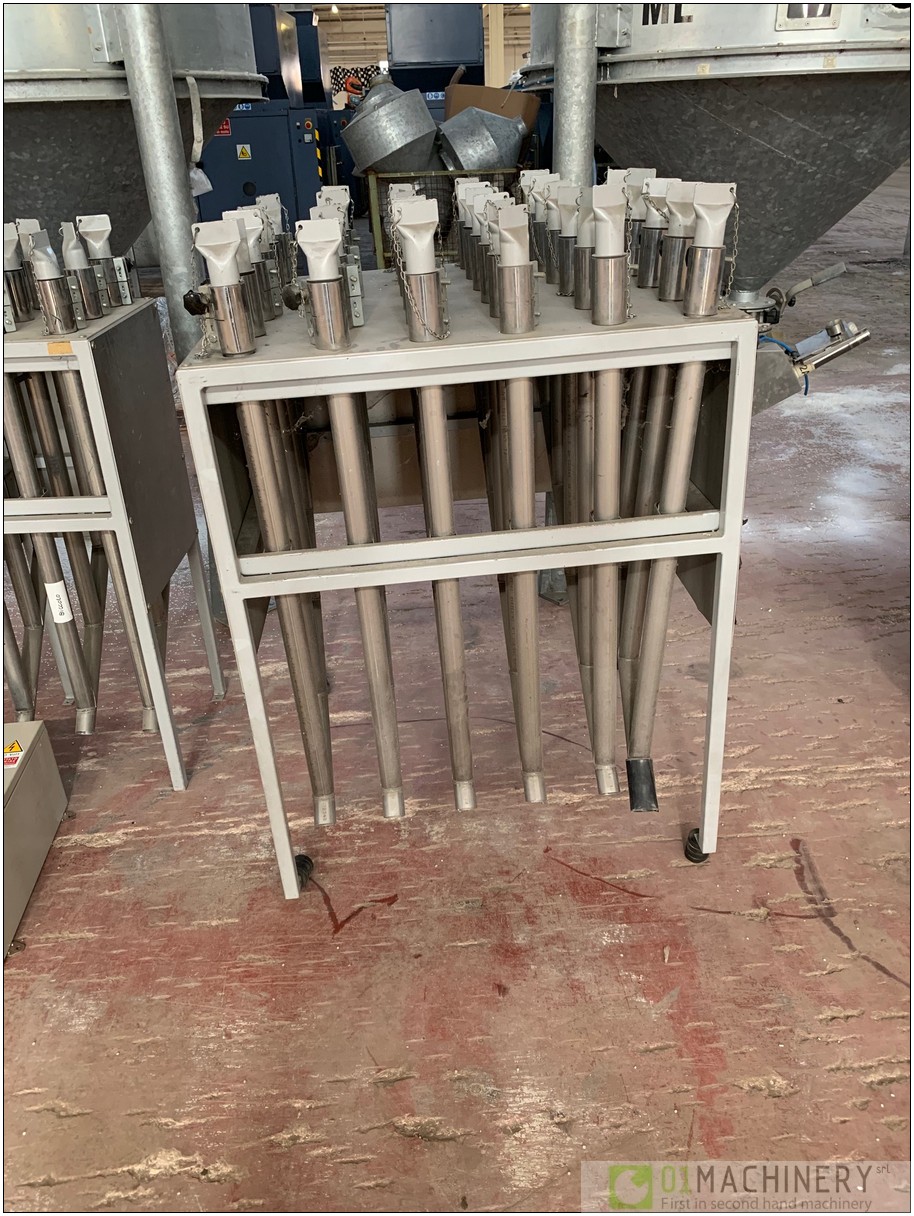

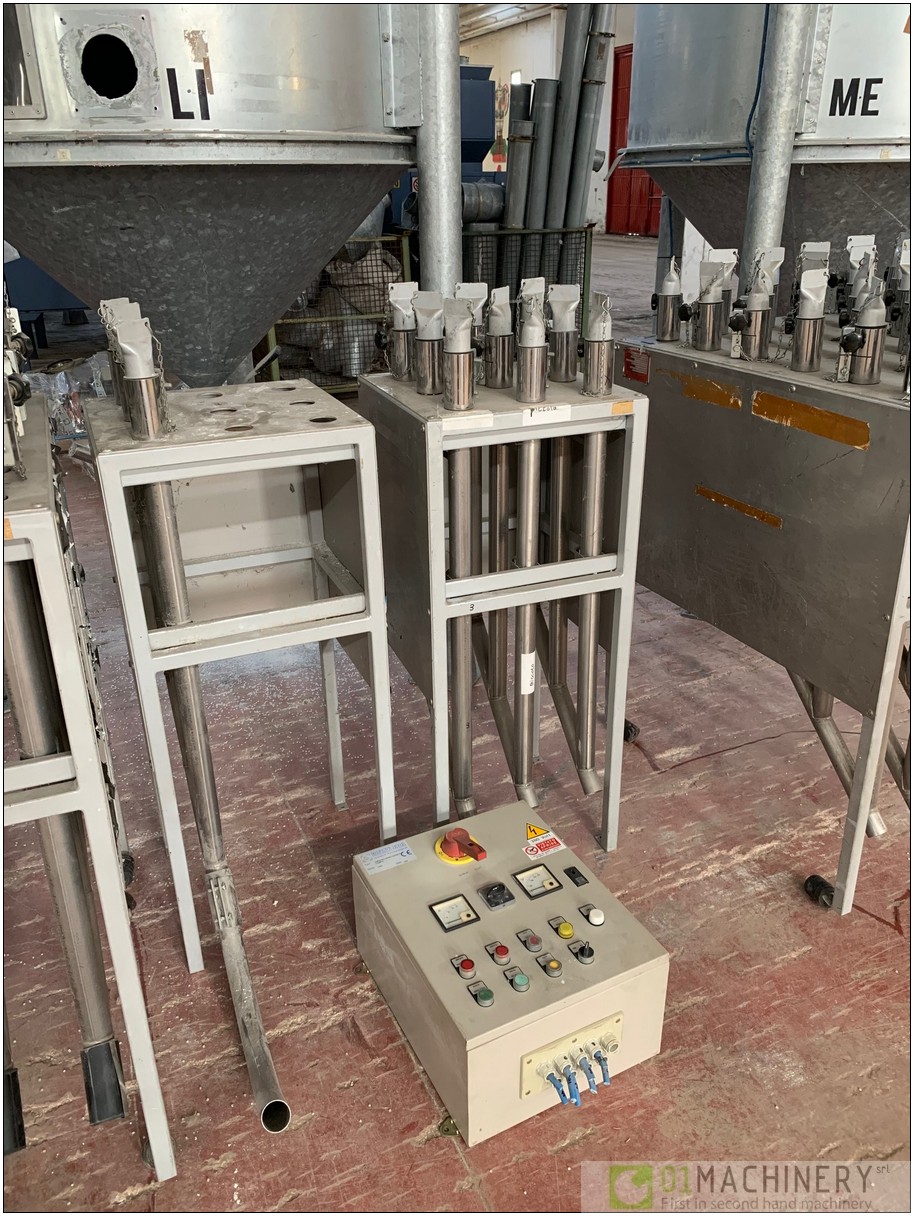

- 4 Manifolds with 16 inputs - 84 outputs

The storage facility is composed of:

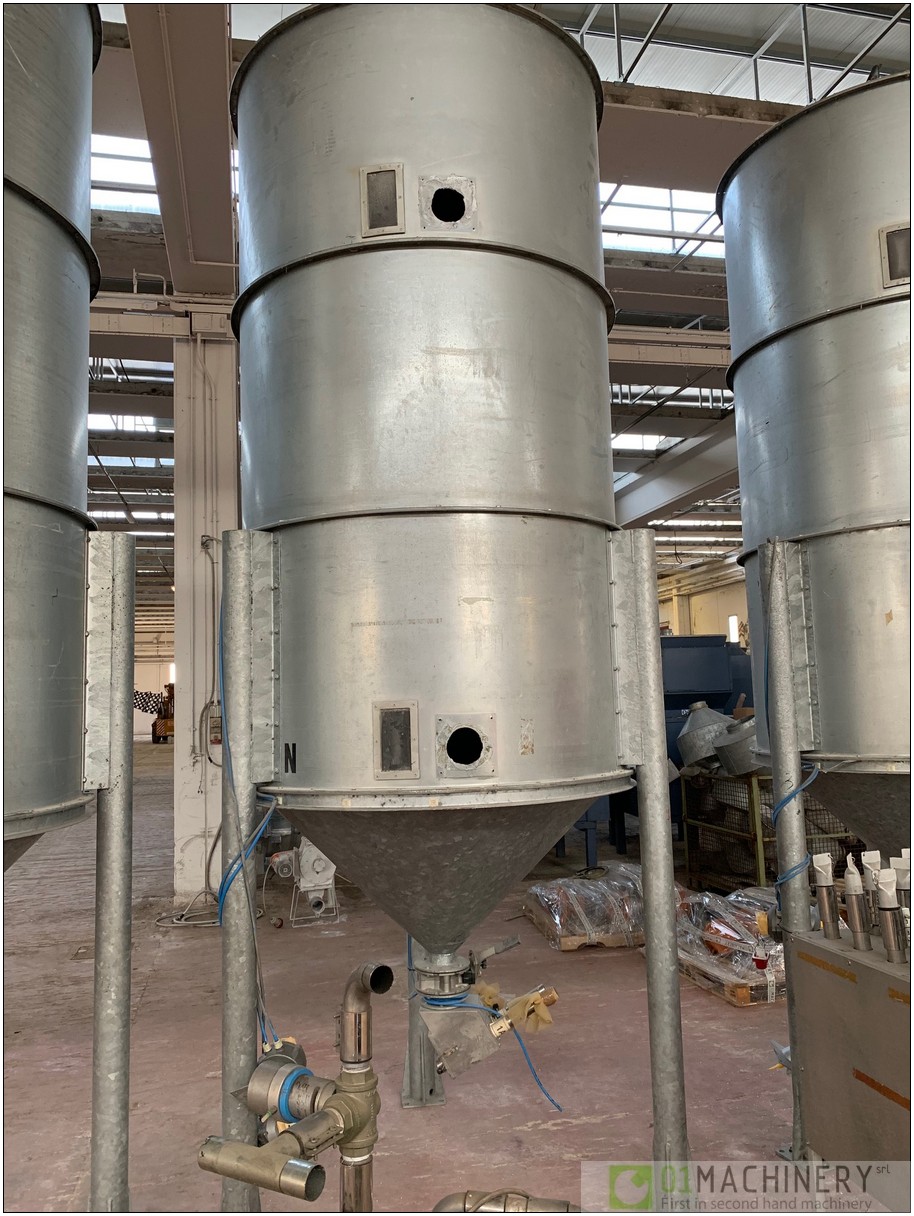

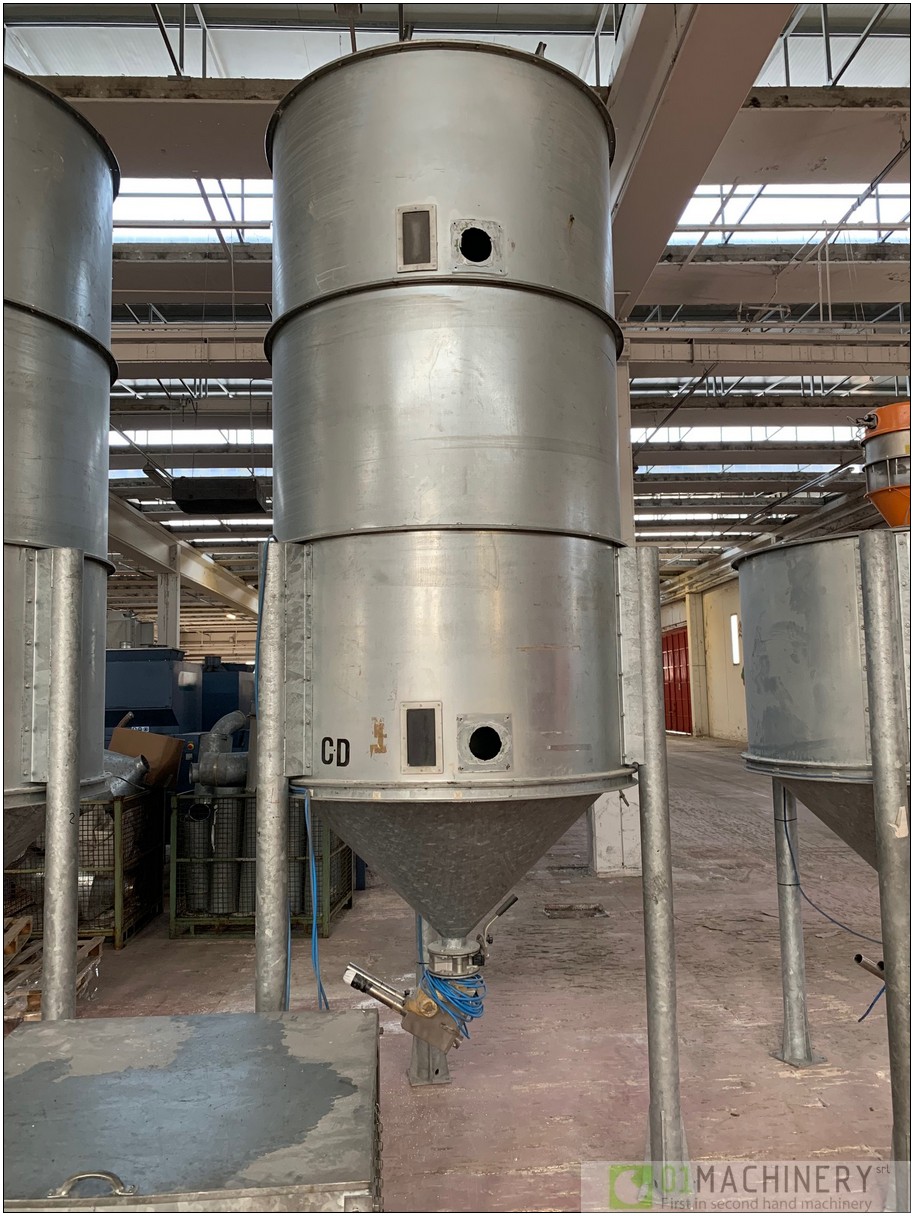

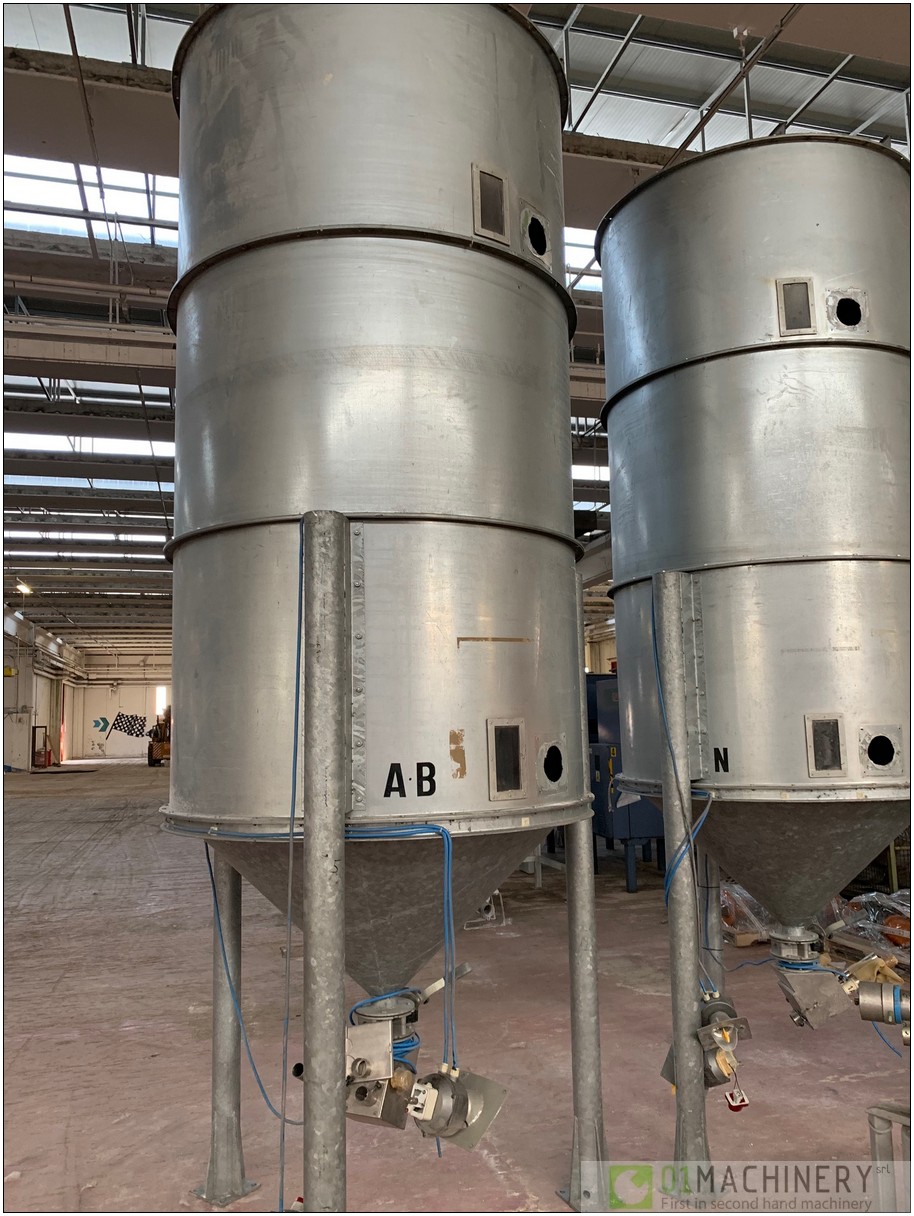

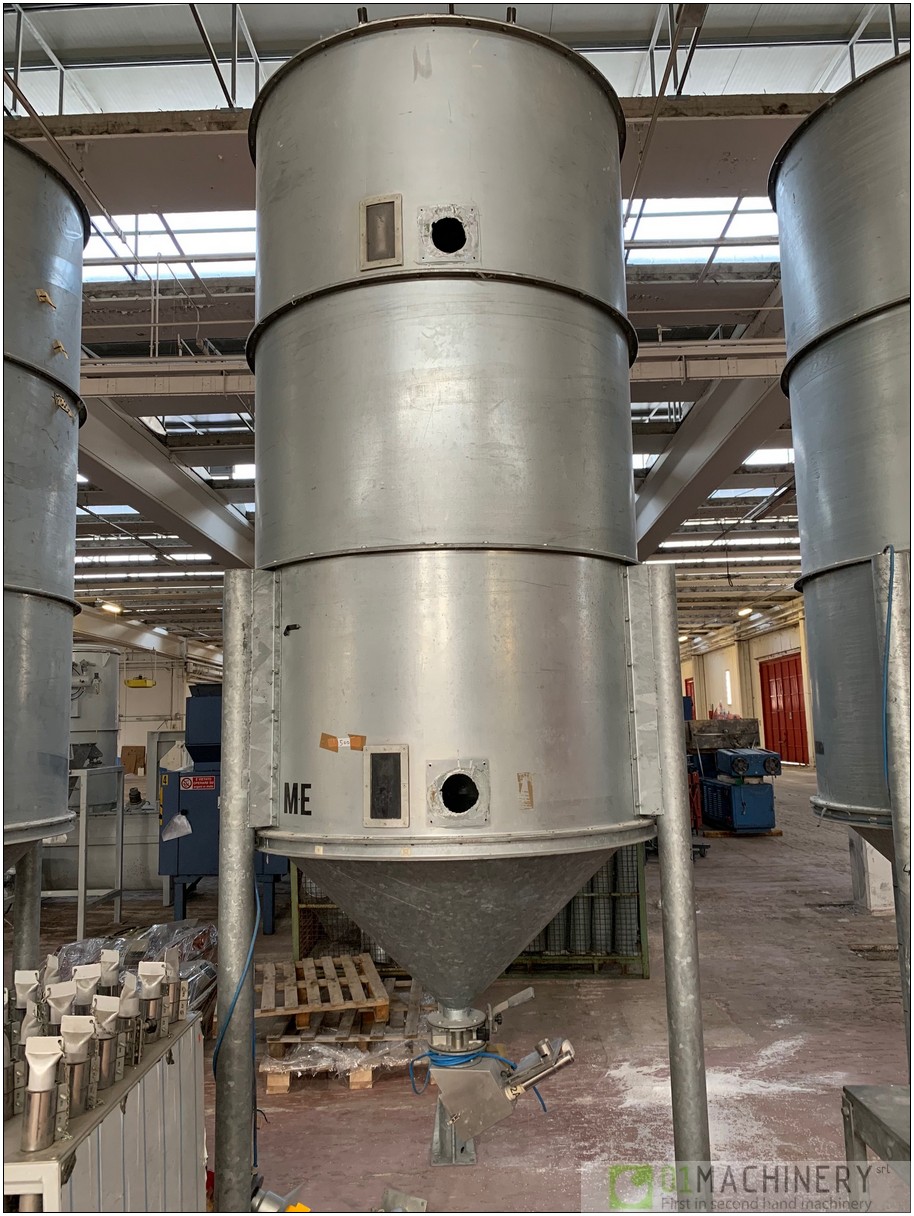

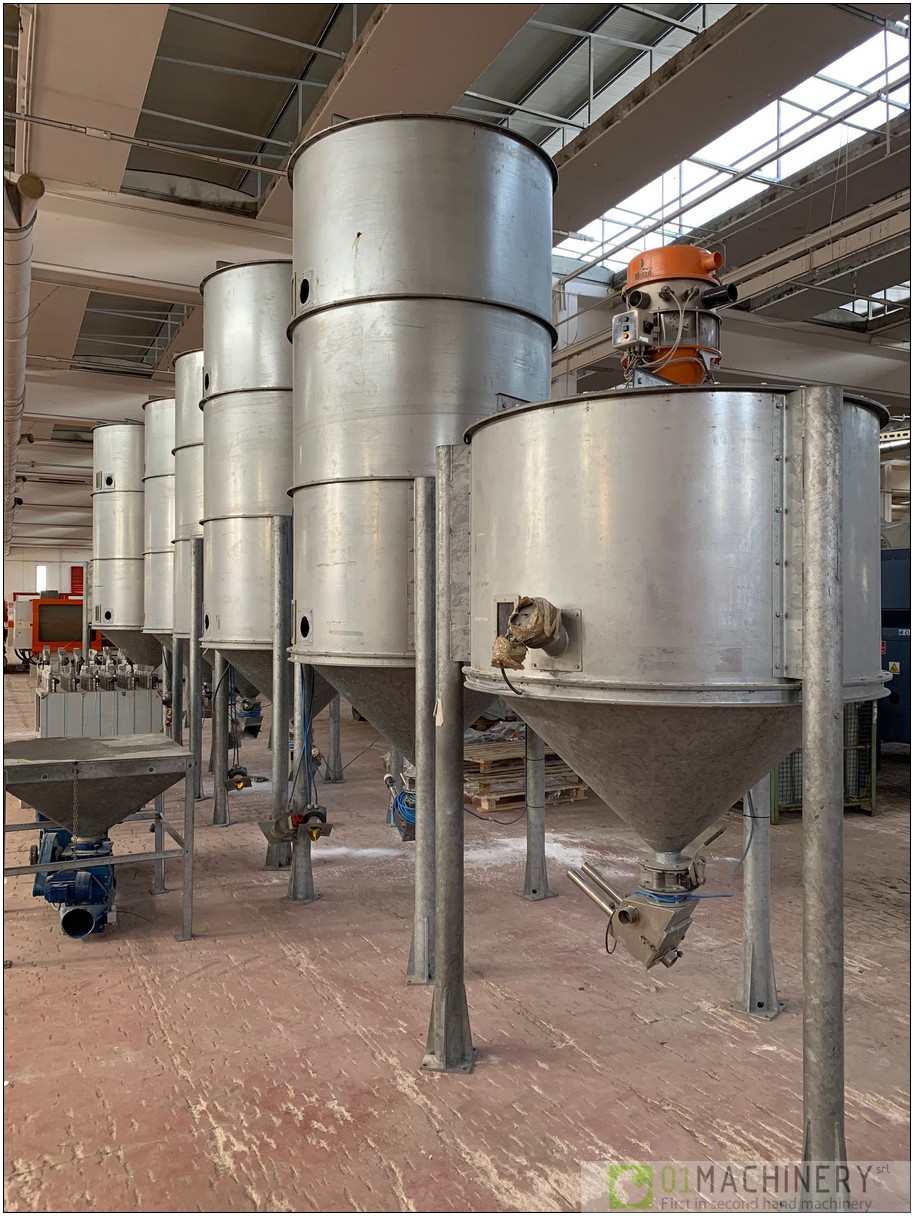

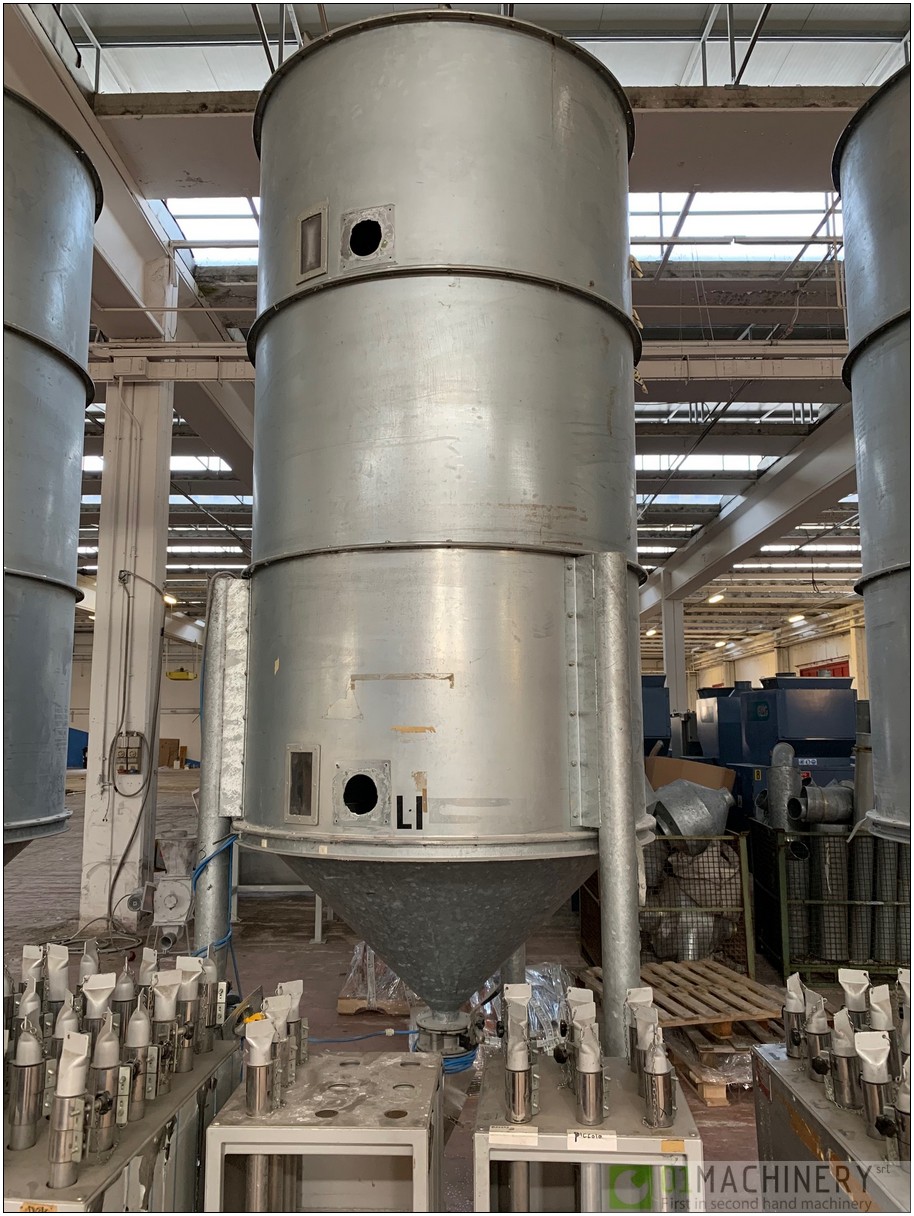

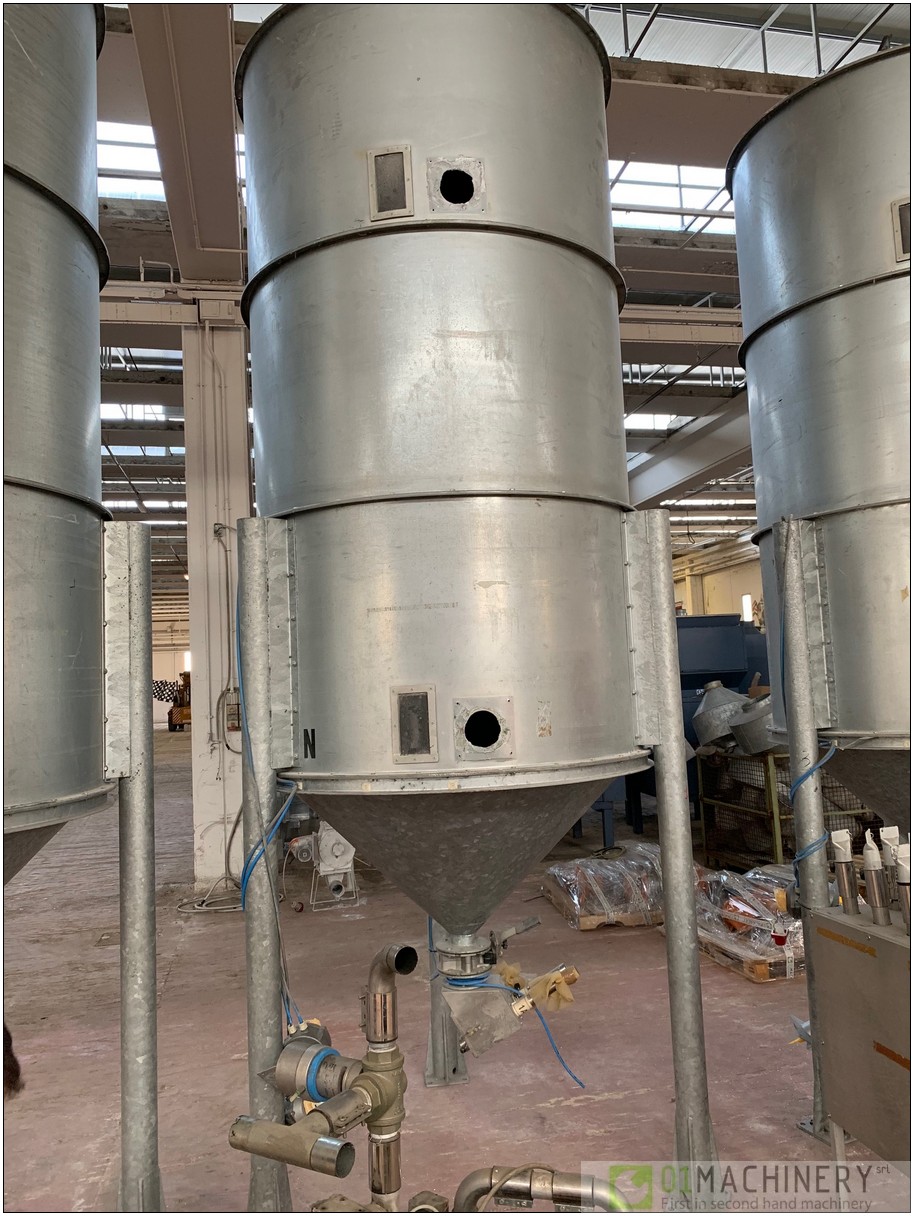

- 5 silos in 4.5 m 3 galvanized sheet each

- 1 silos in 1.5 m 3 galvanized sheet metal

Load group controlled by:

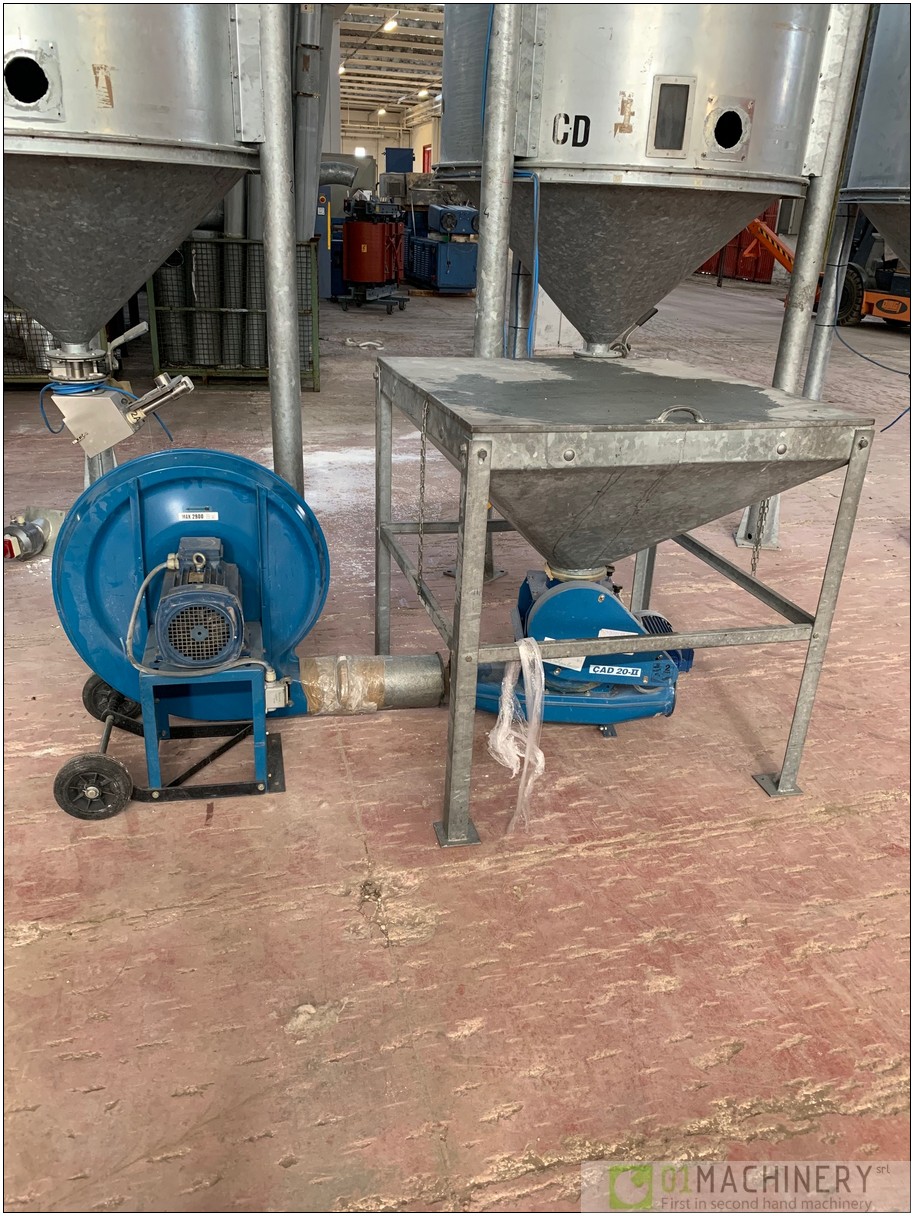

- fan TRL 55     power: 5.5 Hp

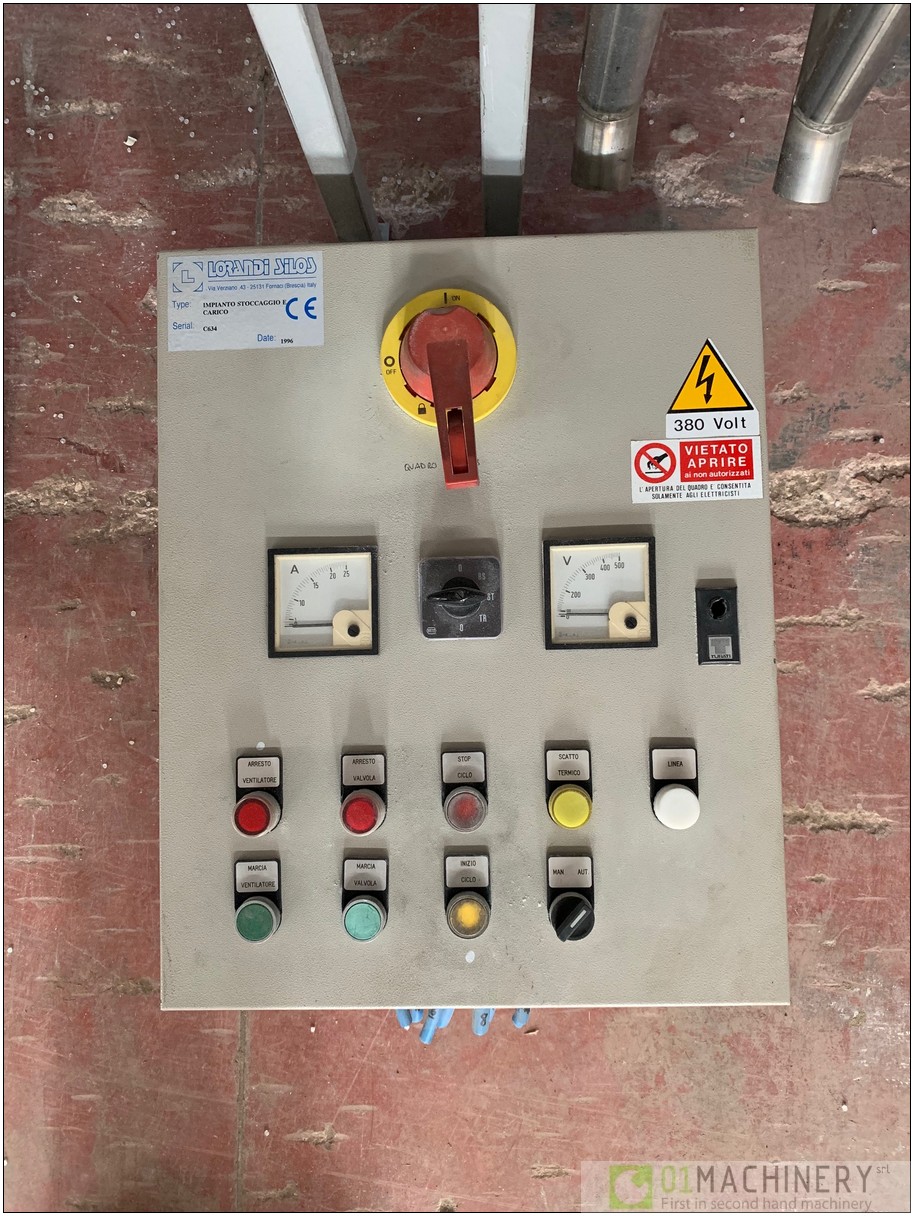

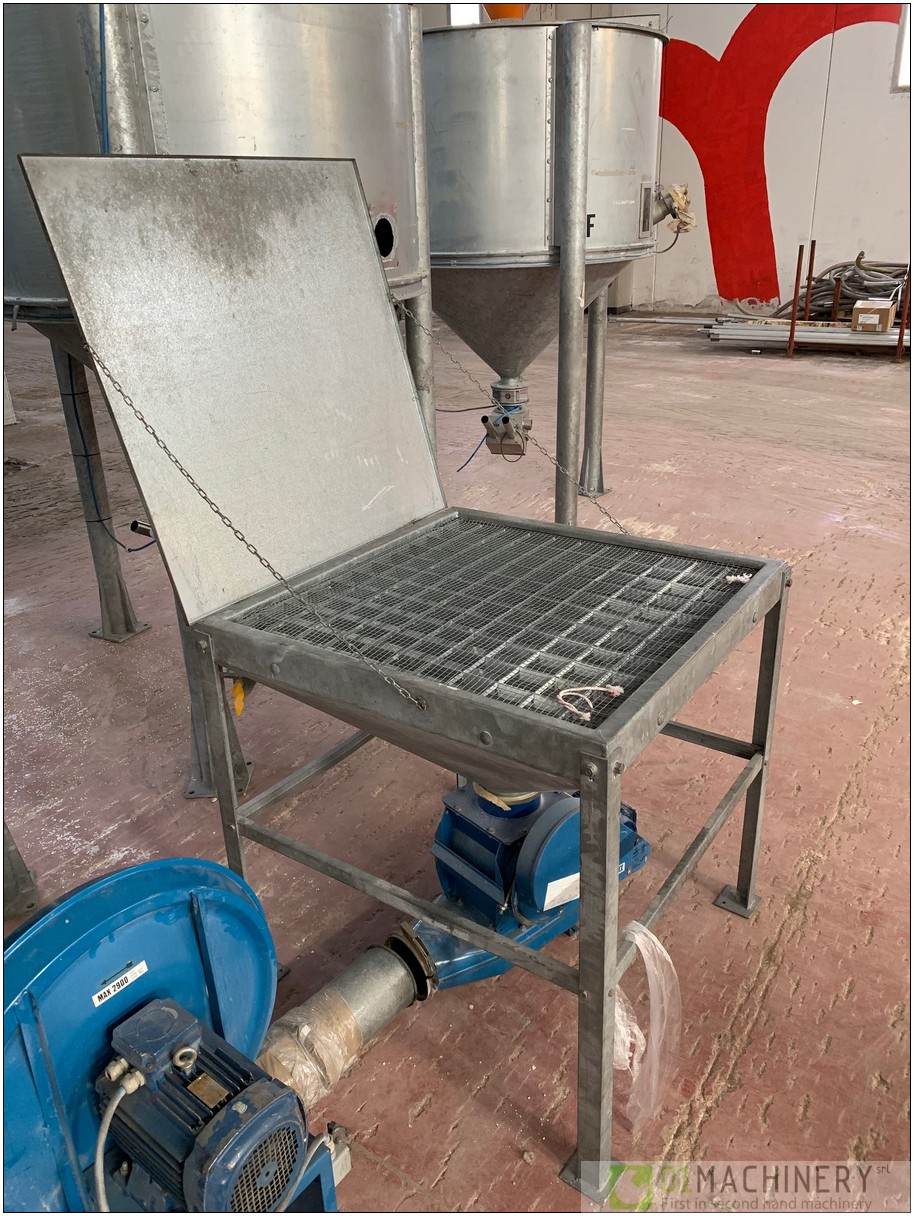

- Bag breaker hopper with star valve complete with control panel
