Wittmann W602 Ac 9584 WI 02

SOLD
Thumb0-Wittmann W602 Ac 9584 WI 02 Thumb1-Wittmann W602 Ac 9584 WI 02 Thumb2-Wittmann W602 Ac 9584 WI 02 Thumb3-Wittmann W602 Ac 9584 WI 02 Thumb4-Wittmann W602 Ac 9584 WI 02 Thumb5-Wittmann W602 Ac 9584 WI 02 Thumb6-Wittmann W602 Ac 9584 WI 02 Thumb7-Wittmann W602 Ac 9584 WI 02 Thumb8-Wittmann W602 Ac 9584 WI 02

Technical Sheet

  • Code: Ac 9584 WI 02
  • Brand:Wittmann
  • Model:W602
  • Year:2002

Description

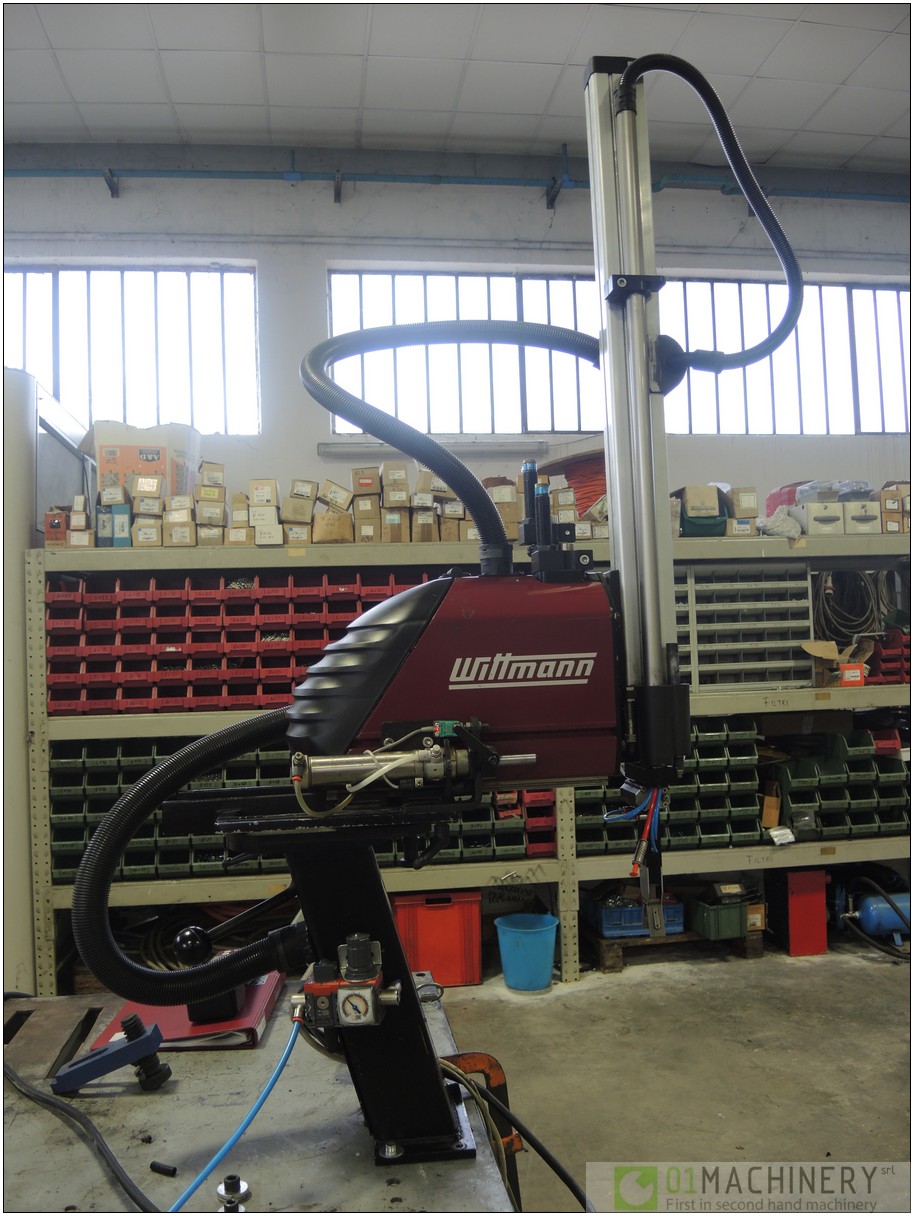

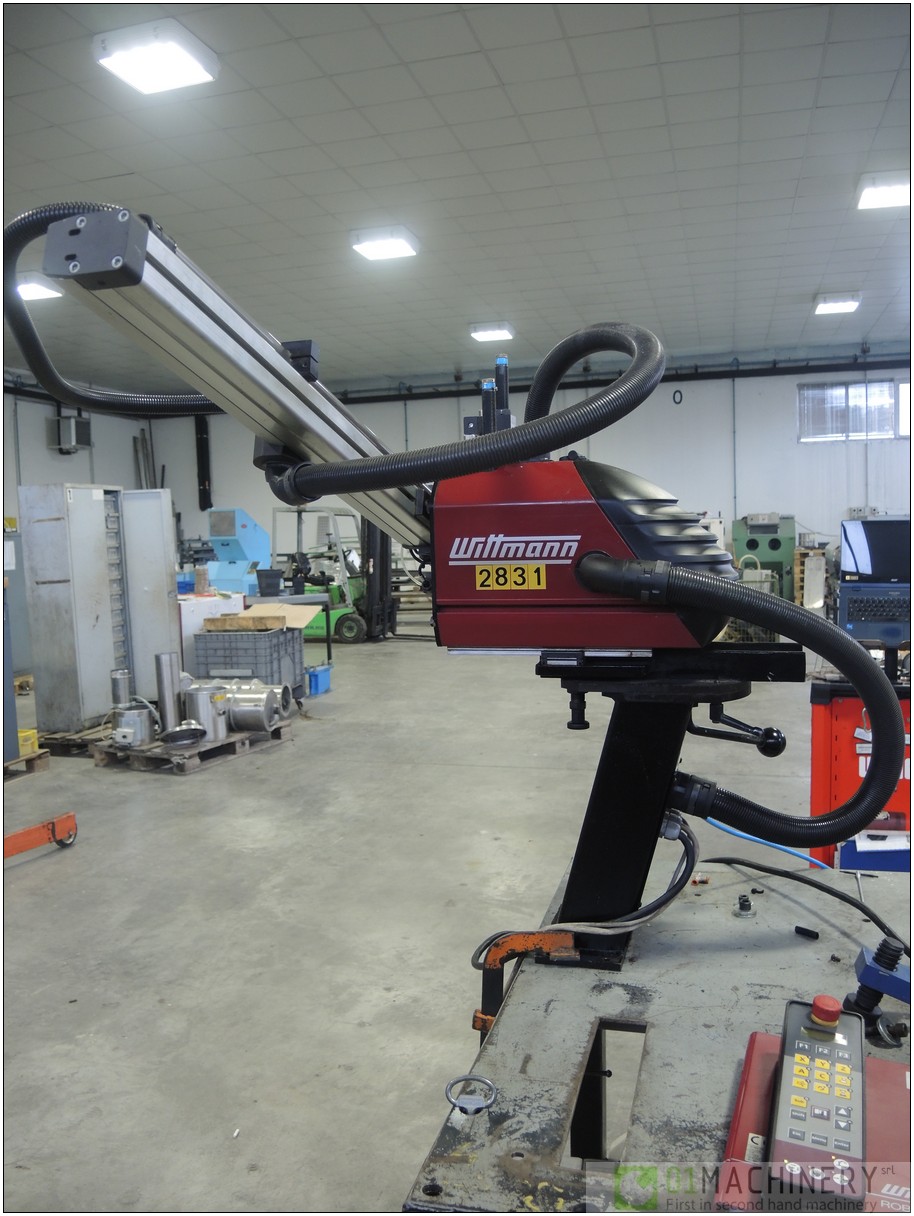

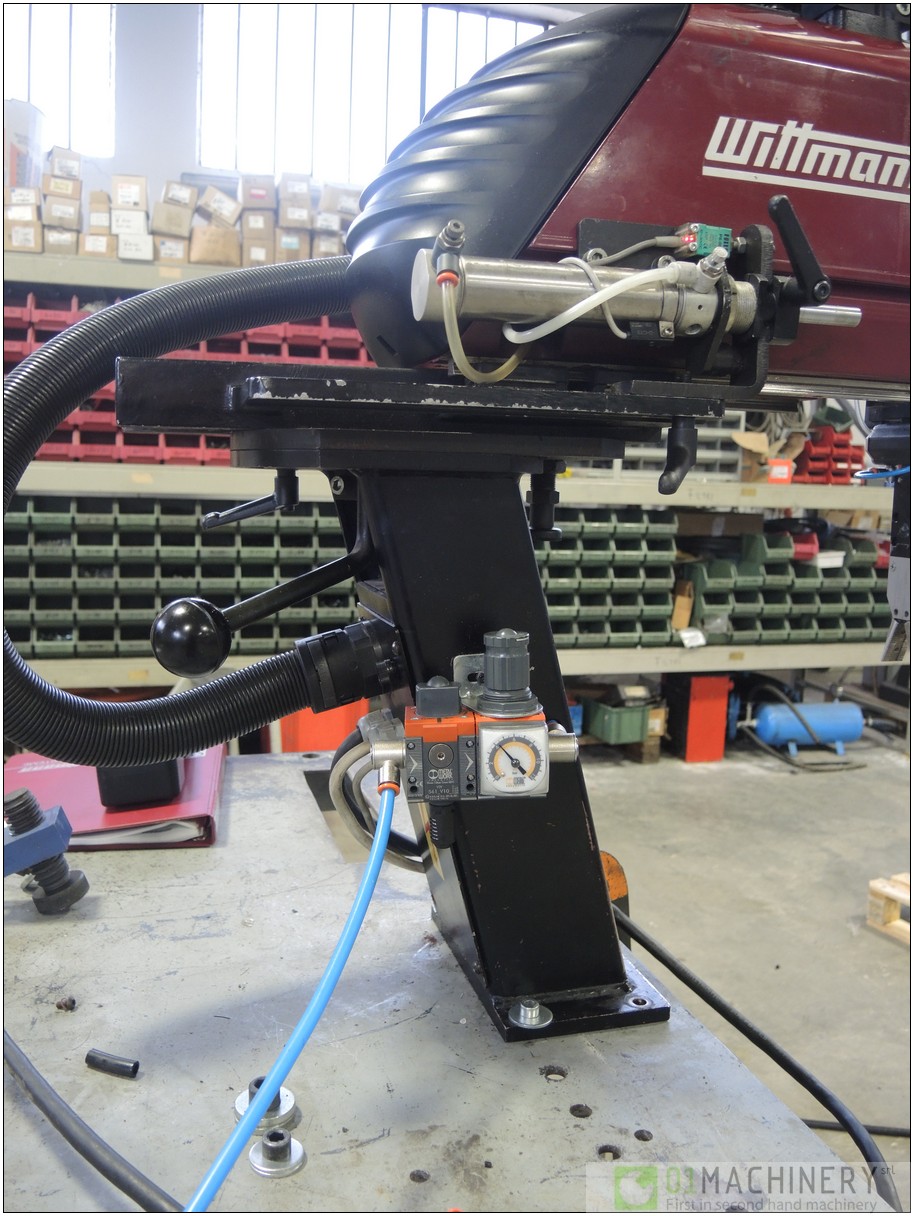

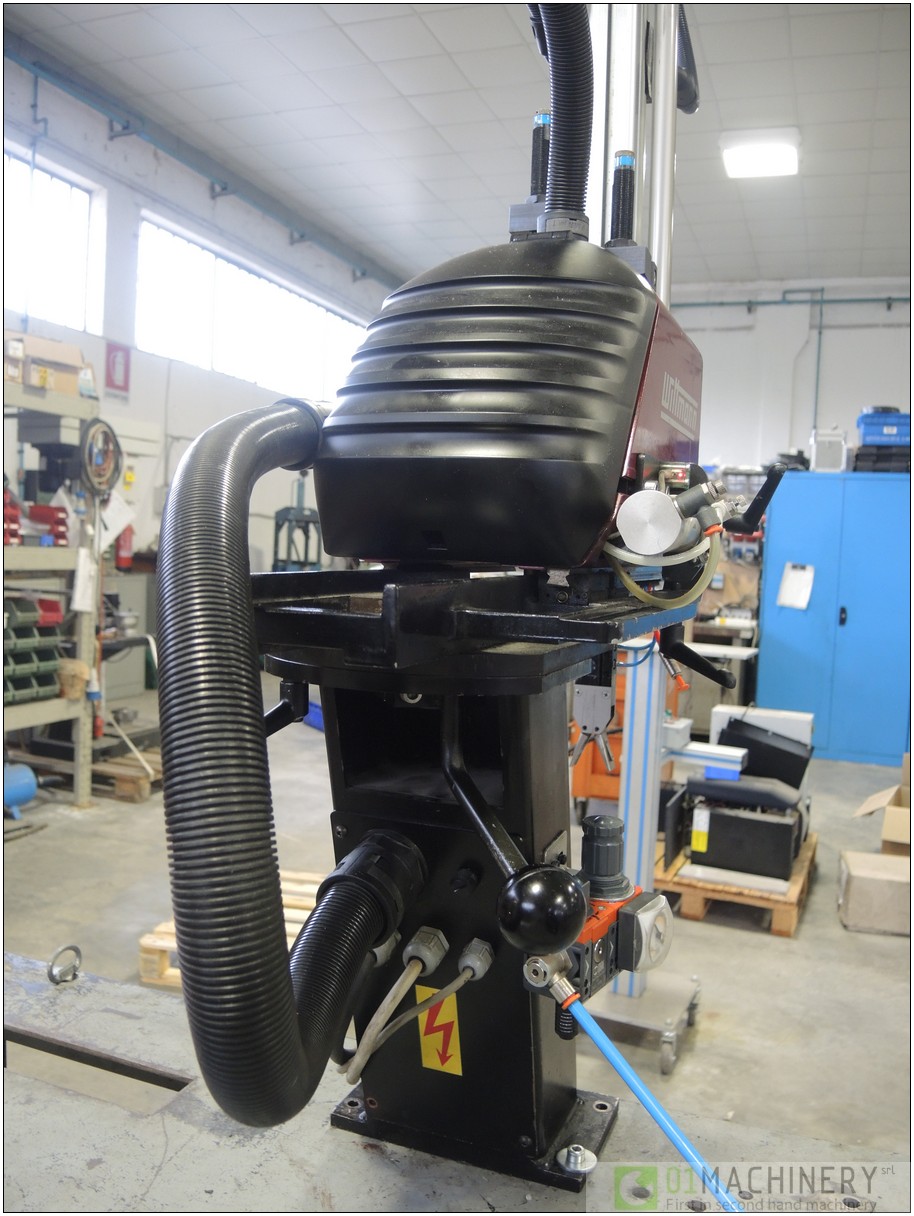

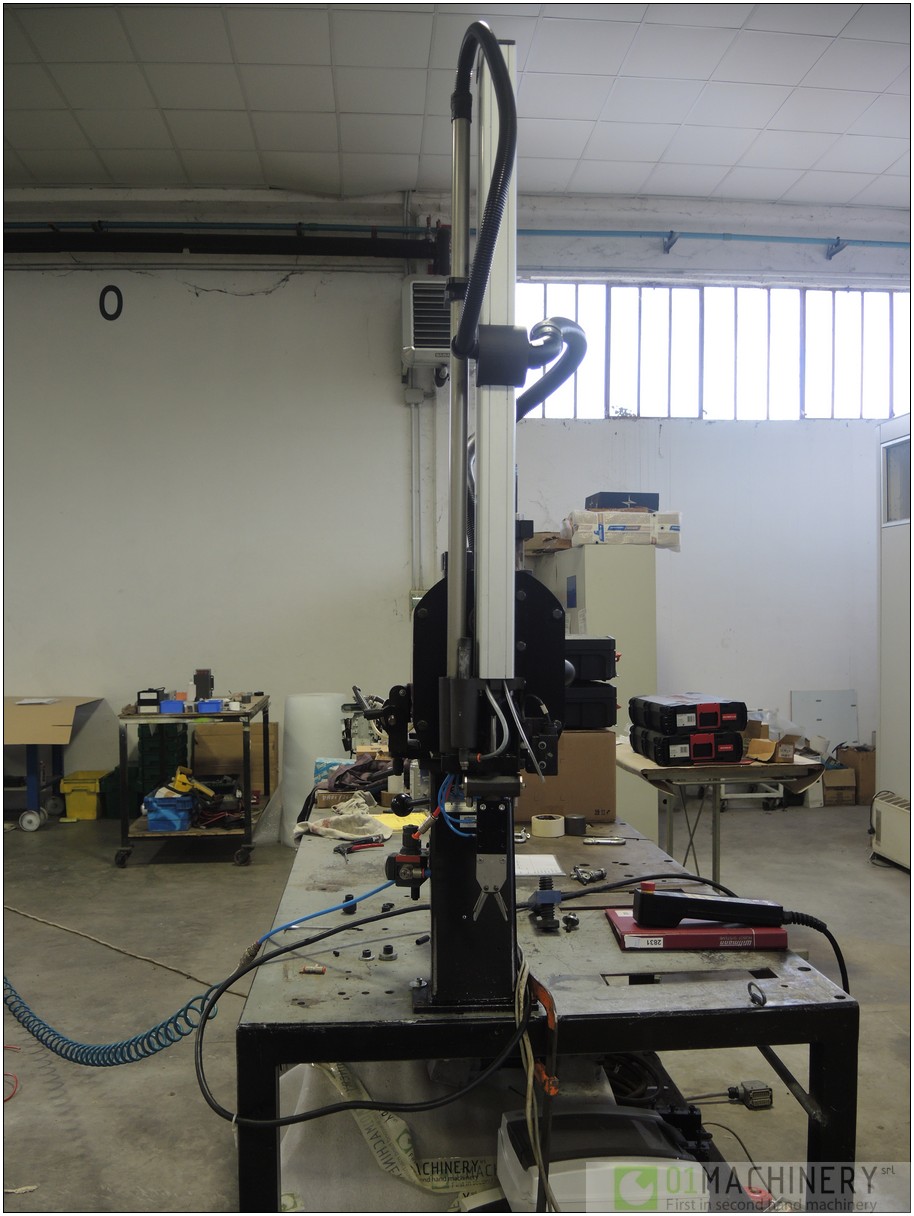

sprue pick-up manipulator

X axis: 100 mm

Y axis: 700 mm

Z axis: 45°- 90°

engines: no -  pneumatic axles

clamp rotation: yes together with Z axis

caliper overturning: no

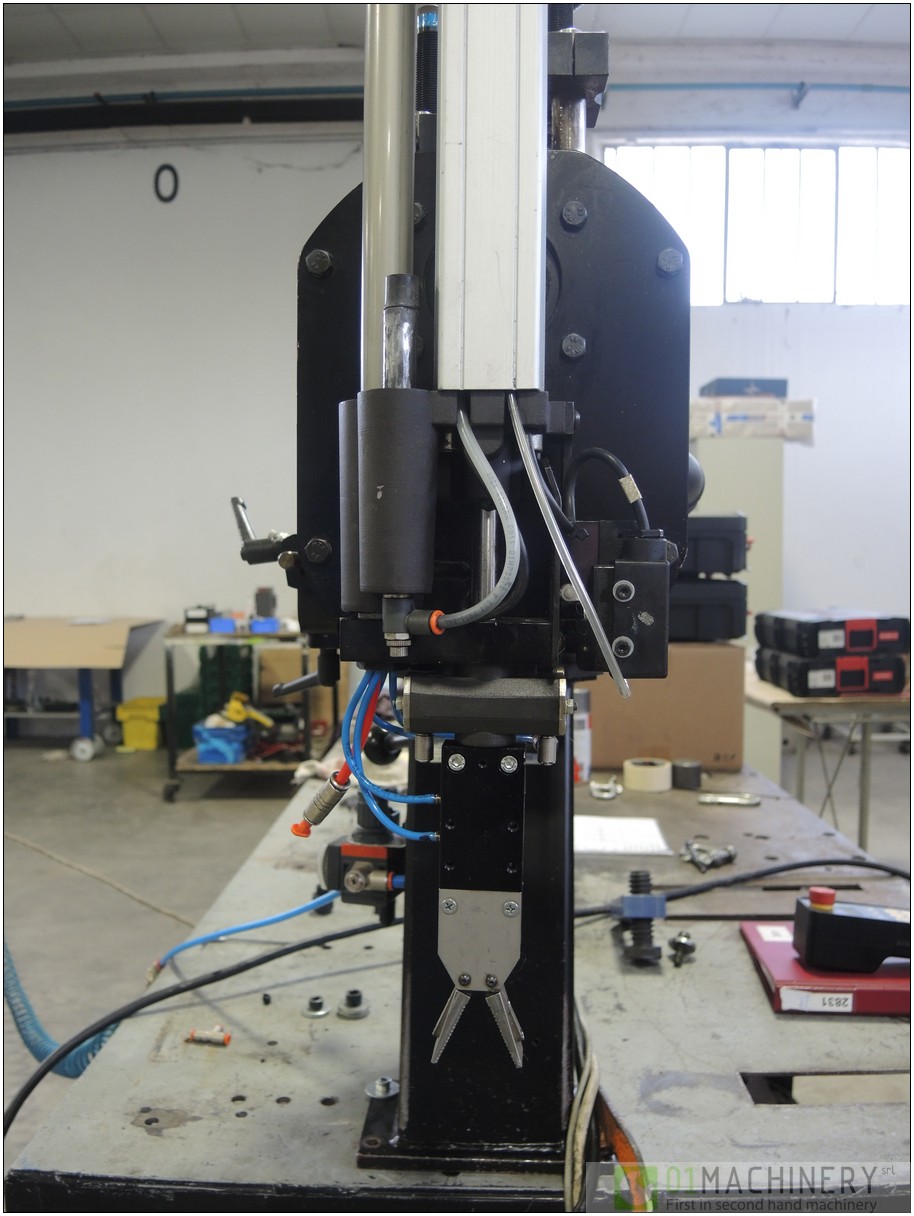

Sprue clamp: yes

empty: 1

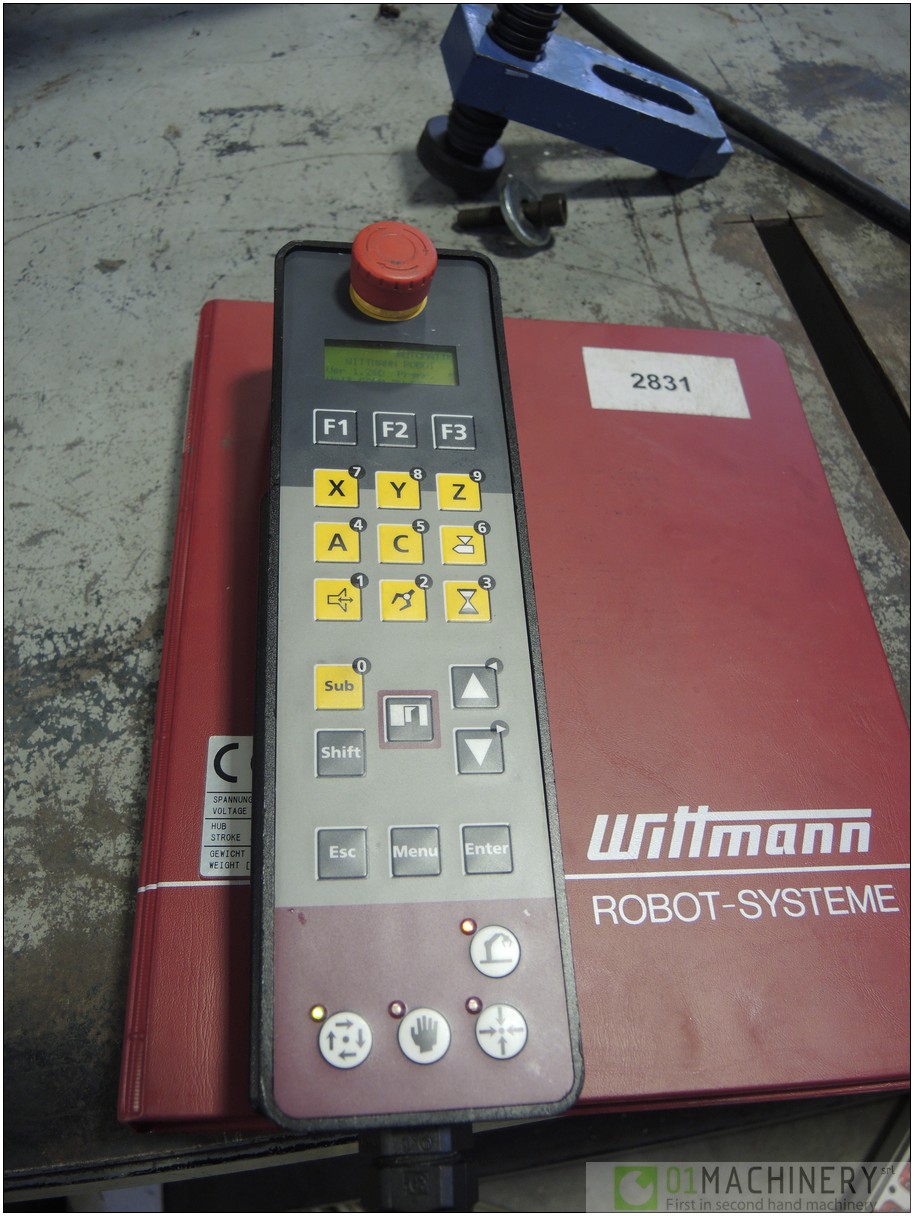

gripper control: yes

Euromap 12
