Wittmann W702 Ac 9583

SOLD
Thumb0-Wittmann W702 Ac 9583 WI 10 Thumb1-Wittmann W702 Ac 9583 WI 10 Thumb2-Wittmann W702 Ac 9583 WI 10 Thumb3-Wittmann W702 Ac 9583 WI 10 Thumb4-Wittmann W702 Ac 9583 WI 10 Thumb5-Wittmann W702 Ac 9583 WI 10 Thumb6-Wittmann W702 Ac 9583 WI 10 Thumb7-Wittmann W702 Ac 9583 WI 10 Thumb8-Wittmann W702 Ac 9583 WI 10 Thumb9-Wittmann W702 Ac 9583 WI 10 Thumb10-Wittmann W702 Ac 9583 WI 10 Thumb11-Wittmann W702 Ac 9583 WI 10

Technical Sheet

  • Code: Ac 9583
  • Brand:Wittmann
  • Model:W702
  • Year:2010

Description

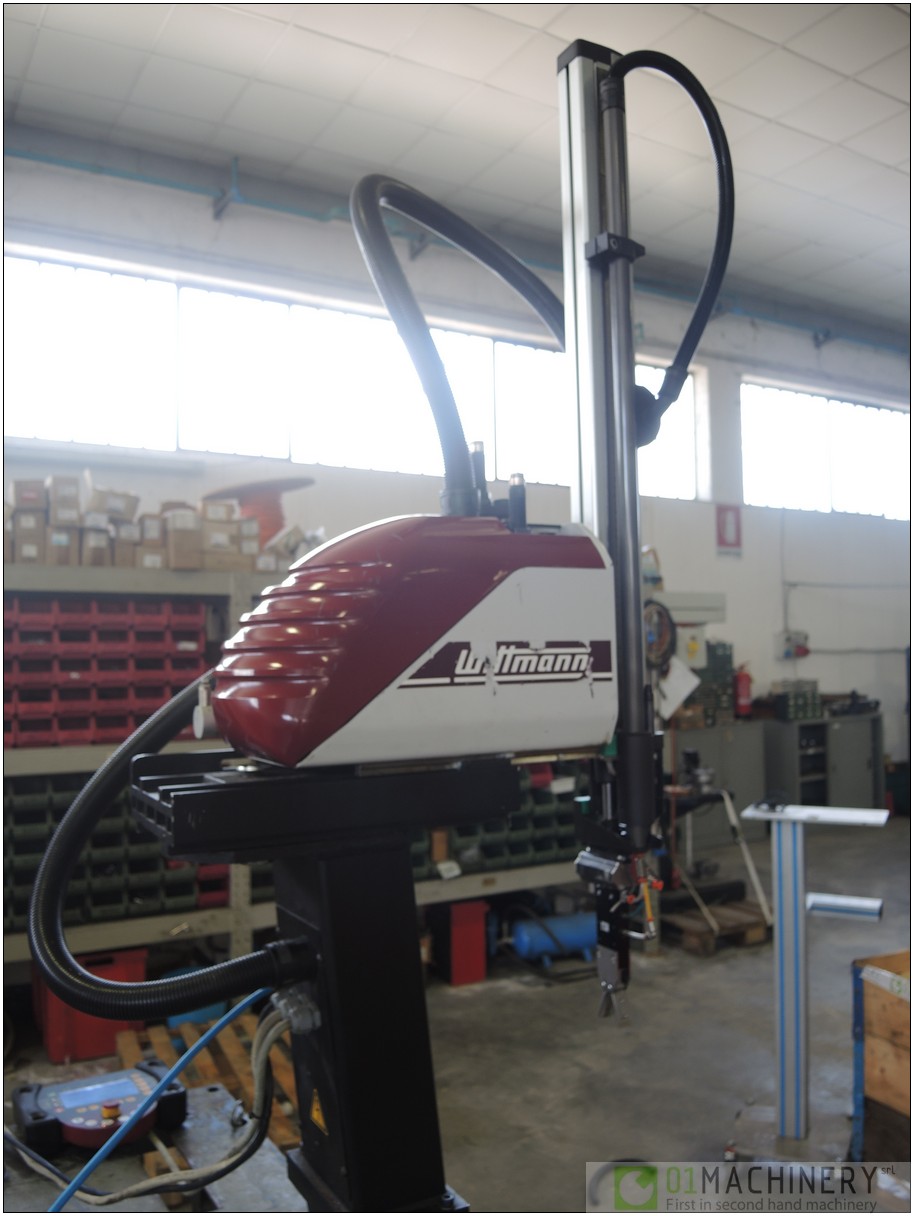

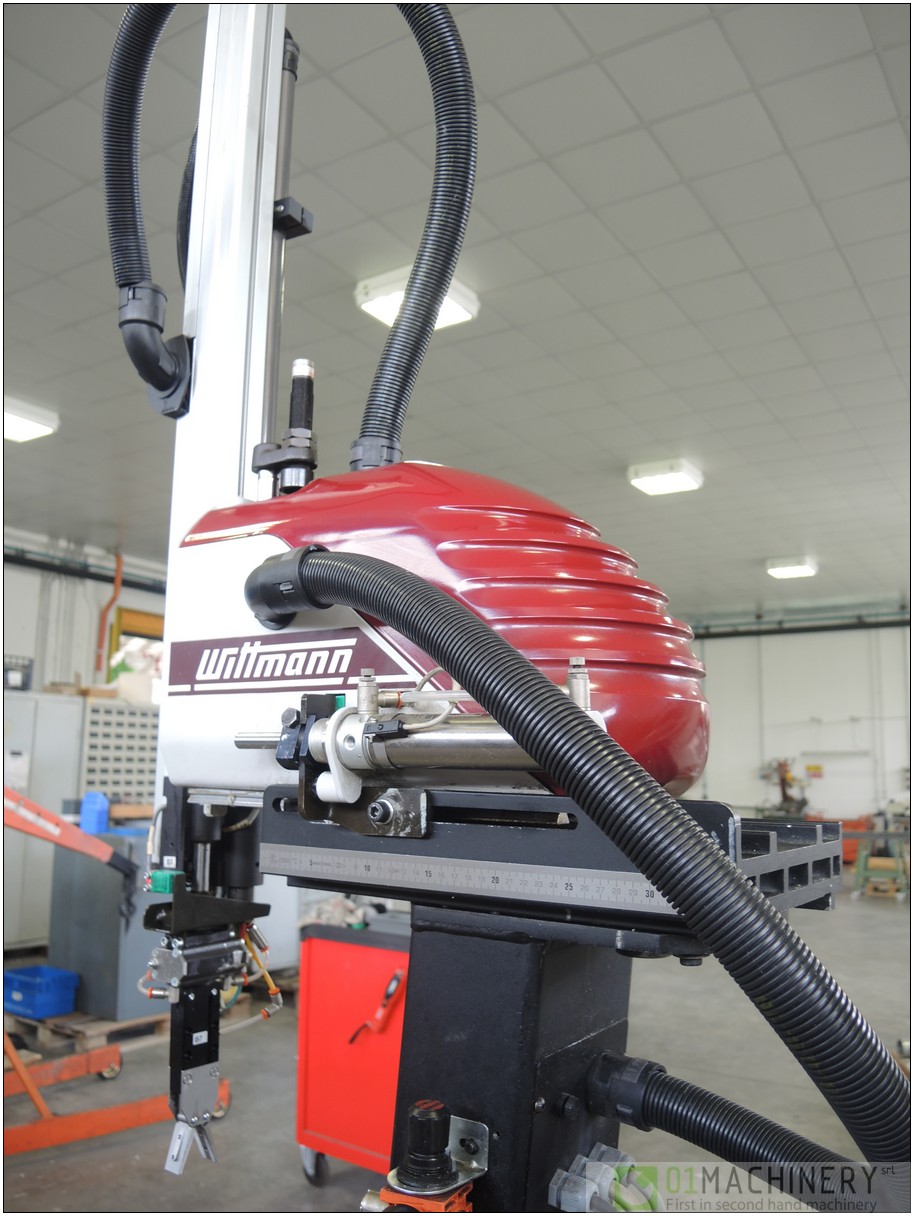

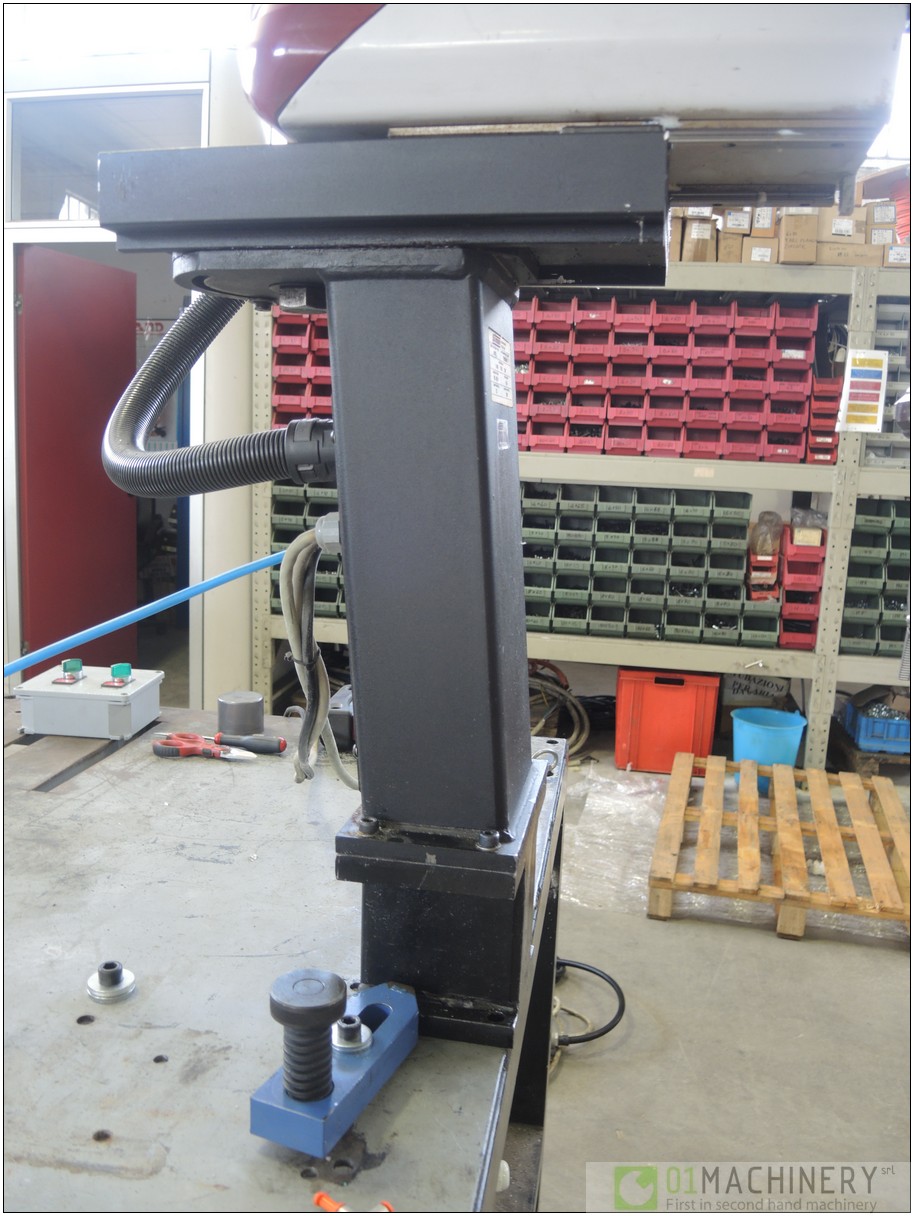

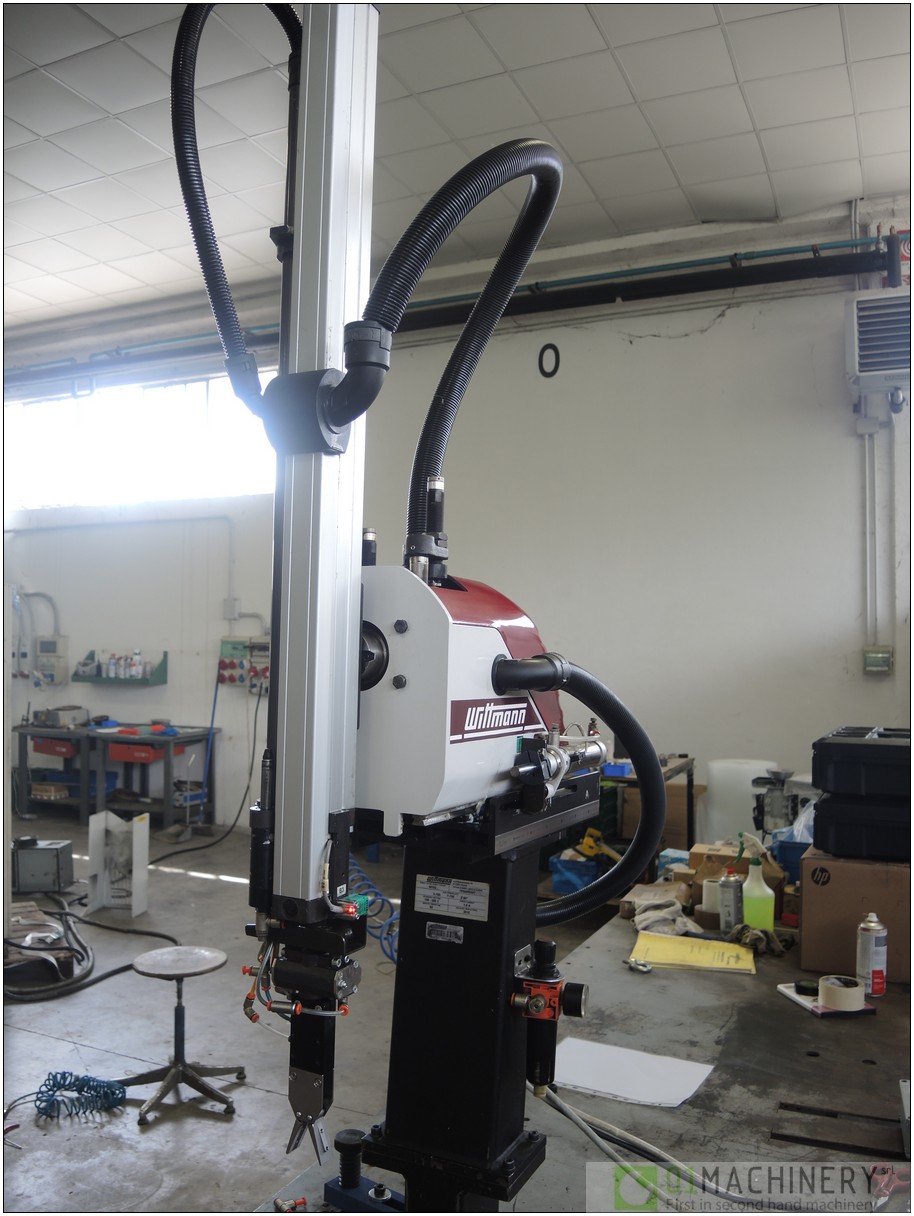

sprue pick-up manipulator

X axis: 100 mm

Y axis: 700 mm

Z axis: 90°

engines: no - pneumatic axles

clamp rotation: yes together with Z axis

caliper overturning: no

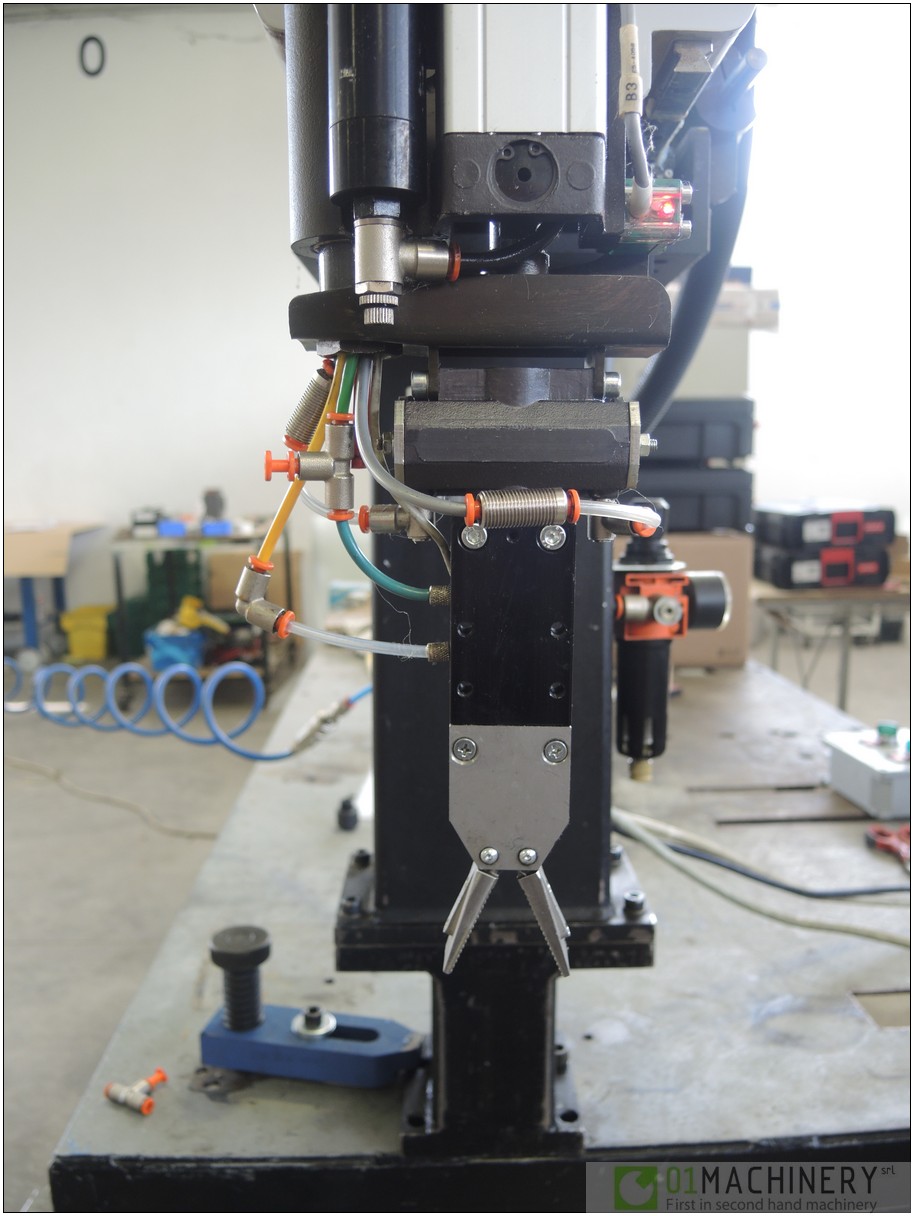

Sprue clamp: yes

empty: 1

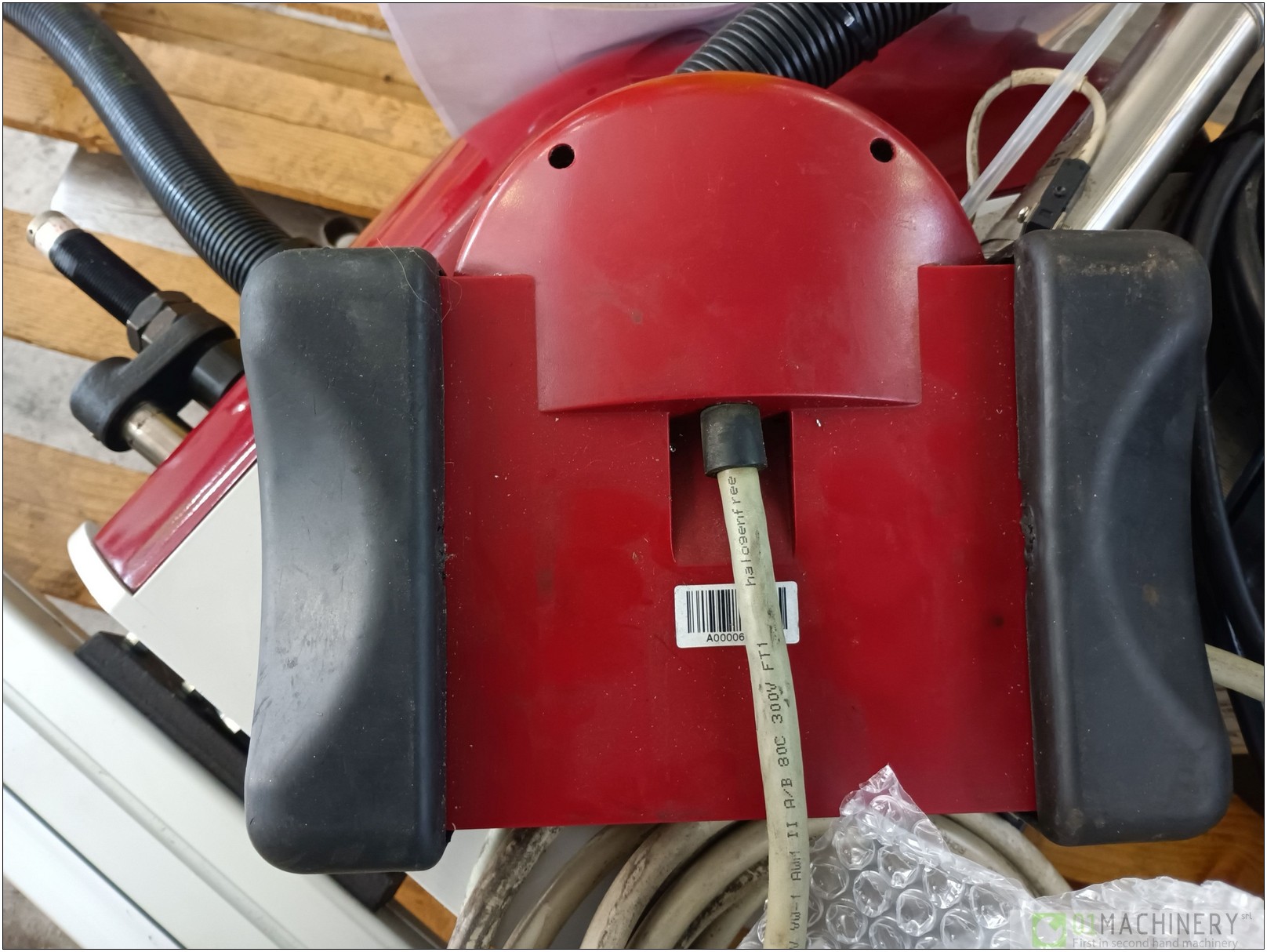

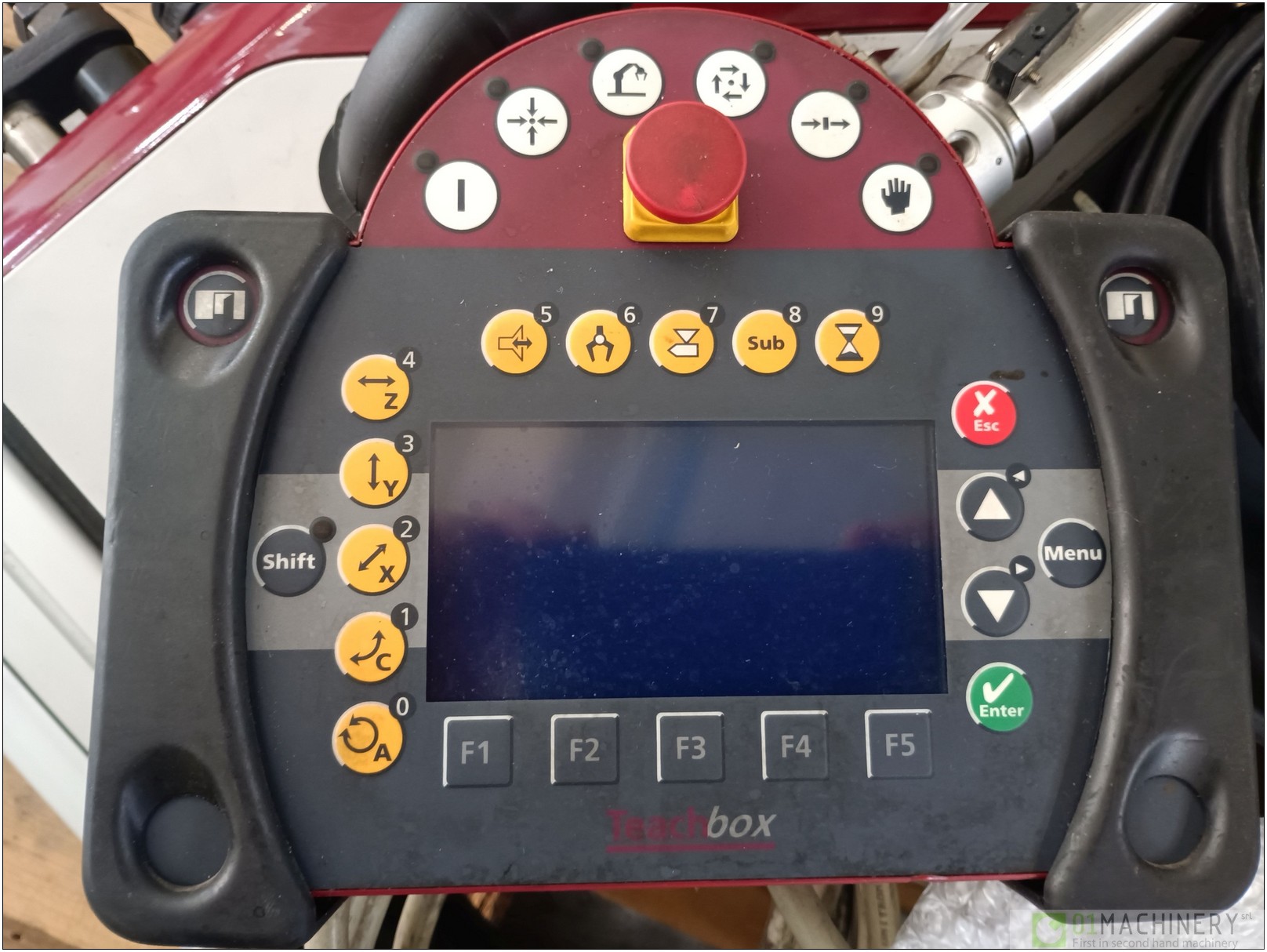

gripper control: yes

Euromap 67
