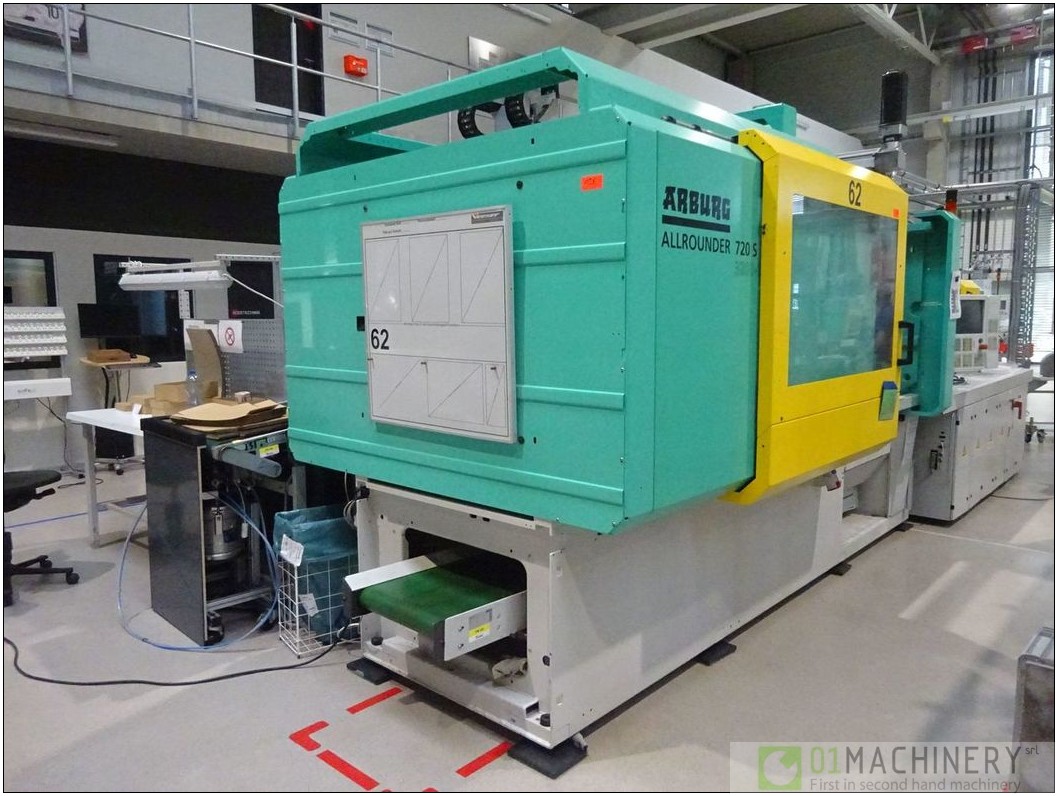

ARBURG 720S 3200 1300/290 In 9379 AR 320 11

SOLD
Thumb0-ARBURG 720S 3200 1300/290 In 9379 AR 320 11 Thumb1-ARBURG 720S 3200 1300/290 In 9379 AR 320 11 Thumb2-ARBURG 720S 3200 1300/290 In 9379 AR 320 11 Thumb3-ARBURG 720S 3200 1300/290 In 9379 AR 320 11 Thumb4-ARBURG 720S 3200 1300/290 In 9379 AR 320 11 Thumb5-ARBURG 720S 3200 1300/290 In 9379 AR 320 11 Thumb6-ARBURG 720S 3200 1300/290 In 9379 AR 320 11 Thumb7-ARBURG 720S 3200 1300/290 In 9379 AR 320 11

Technical Sheet

  • Code: In 9379 AR 320 11
  • Brand:ARBURG
  • Model:720S 3200 1300/290
  • Tonnage:320
  • Year:2011
  • Clearence between tie-bars:720x720
  • Screw diameter:A:55 B:35
  • Calculated shot volume:A:558 B:144
  • Min/Max mould thickness: 300-700
  • Core pull: 2 UNO PER TAVOLA ROTANTE
  • Euromap: 3200-1300-290
  • Mov. plasten stroke: 700

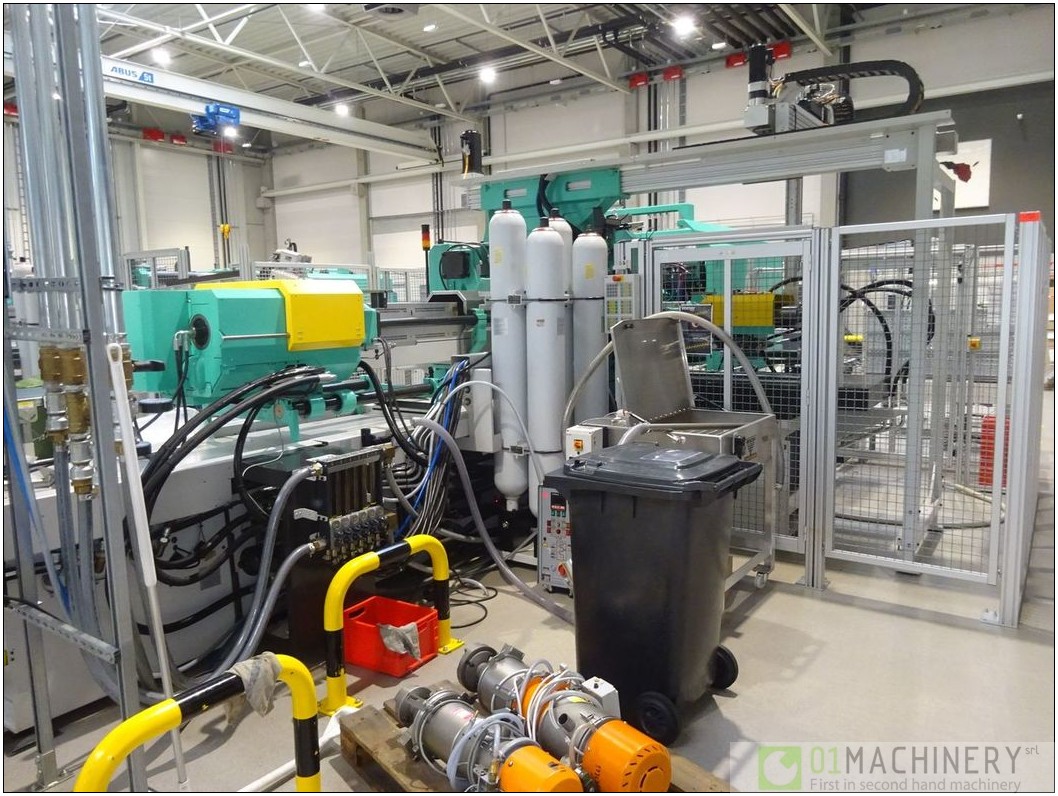

  • Akkumulator: Yes

Description

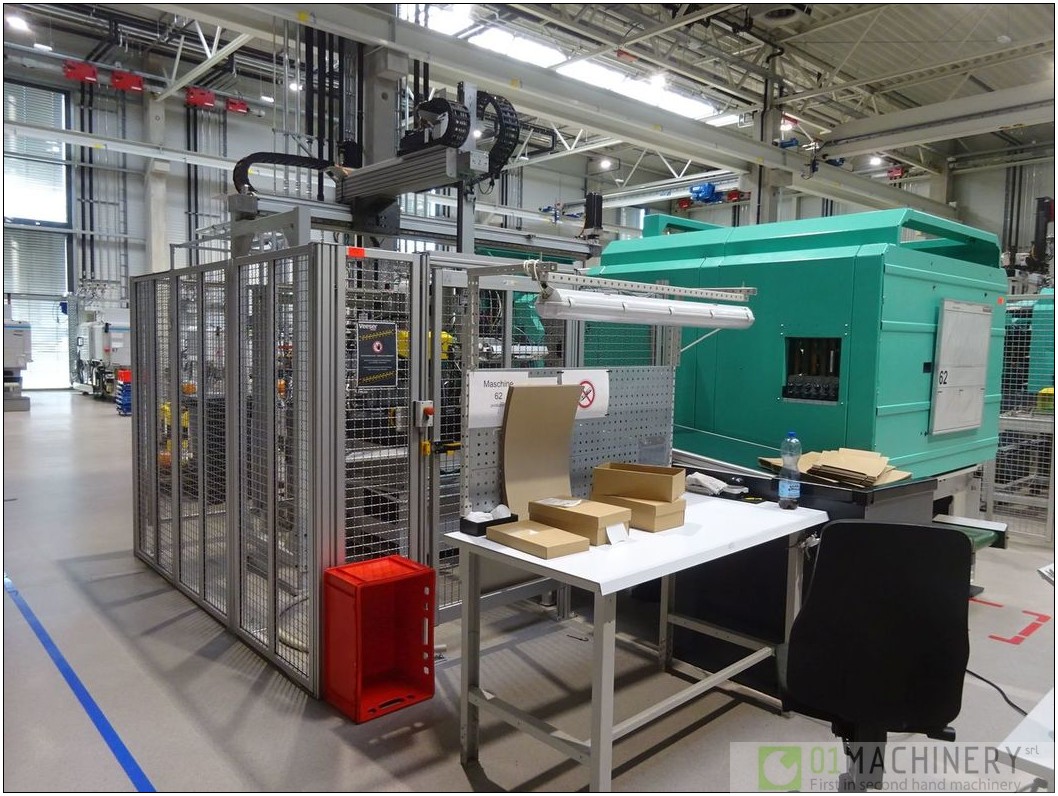

COMPLETE ISLAND DIMENSIONS 7800 X 4000 X H4300

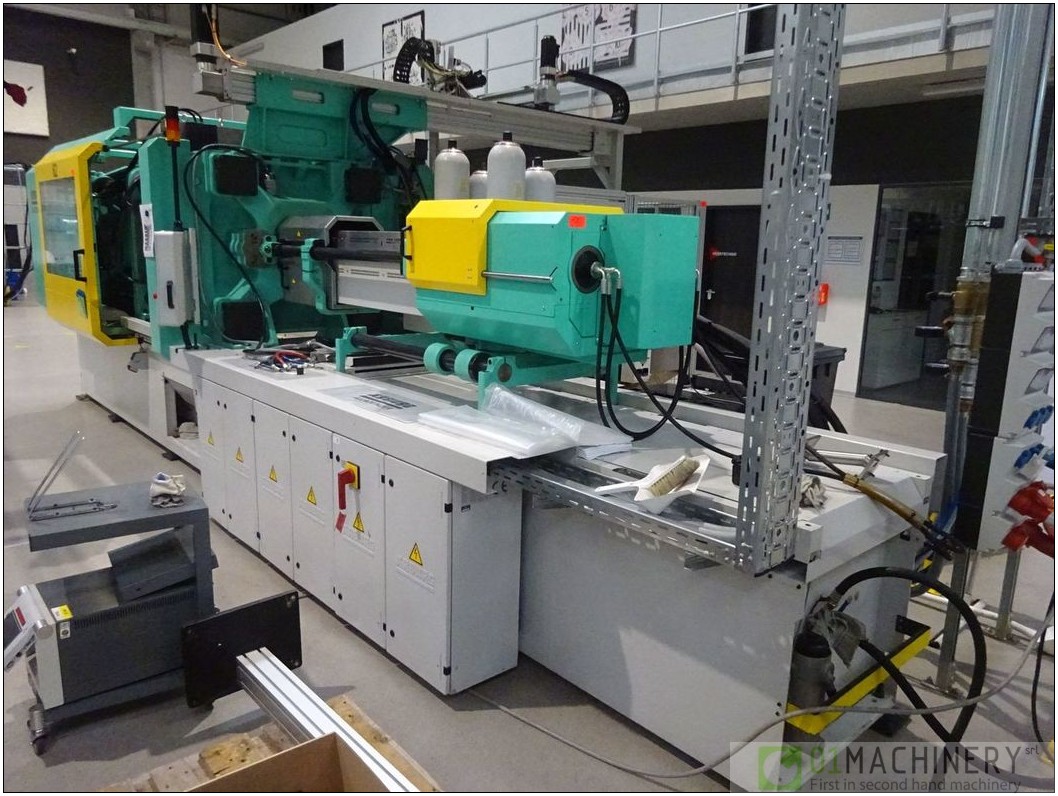

Press with second lateral injection

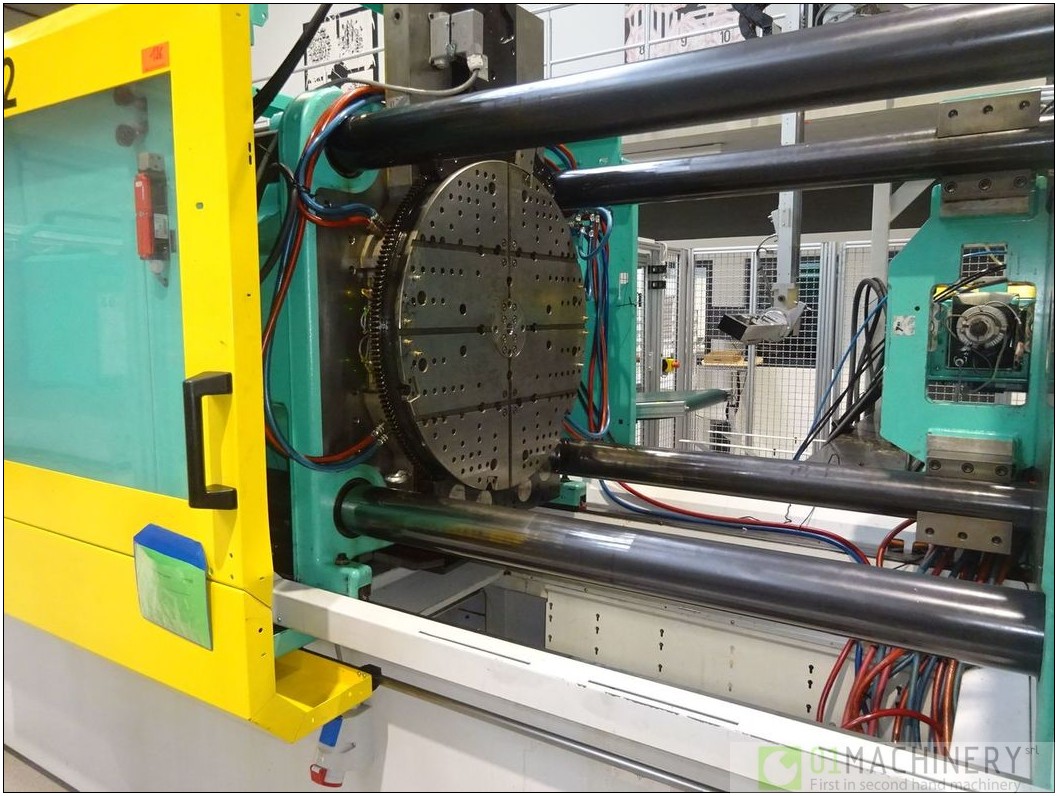

press with rotary table thickness 166mm

mold heating 12 zones

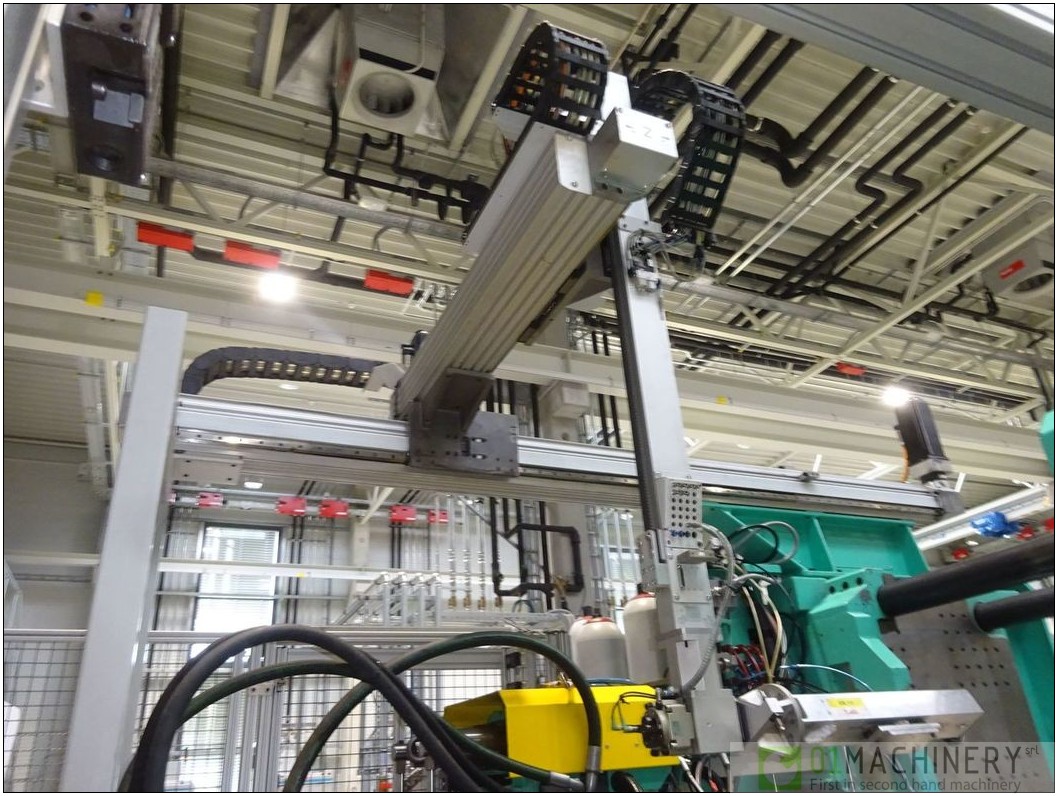

Integrated Cartesian robot MULTILIFT V 15Kg Year 2011

X axis: 900 mm

Y axis: 1400 mm

Z axis: 3200 mm

Motors: brushless

B axis; not present

C axis rotation: 90°

Max load: 11 kg

Interface integrated into the press
